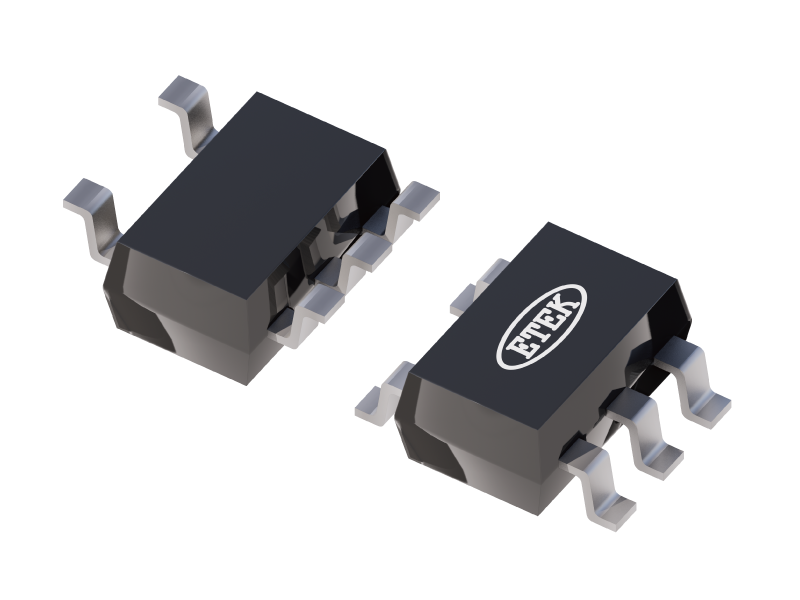

ET85001D/E/EA/SC/SCA/M
Contact
General Description
ET85001 is a low-voltage (1.8V to 5.5V) operational amplifier with rail-to-rail input and output swing capabilities. ET85001 provides a cost-effective solution for space-constrained applications such as smoke detectors, wearable electronics, and small appliances where low-voltage operation and high capacitive-load drive are required. The capacitive-load drive is 500pF and the resistive open-loop output impedance makes stabilization easier with much higher capacitive-loads.
Specification
Sample
Features
- 1.8V to 5.5V Supply Voltage
- Low input offset voltage: ±0.4 mV (Typ)
- Unity-gain bandwidth: 1 MHz(Typ)
- Low broadband noise: 27 nV/√Hz (Typ)
- Low input bias current: 5 pA (Typ)
- Low quiescent current: 60 µA/Ch (Typ)
- Low Power Consumption
- Single Channel
- Small Package Options
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET85001D/E/EA/SC/SCA/M Datasheet | 2025-10-18 |
