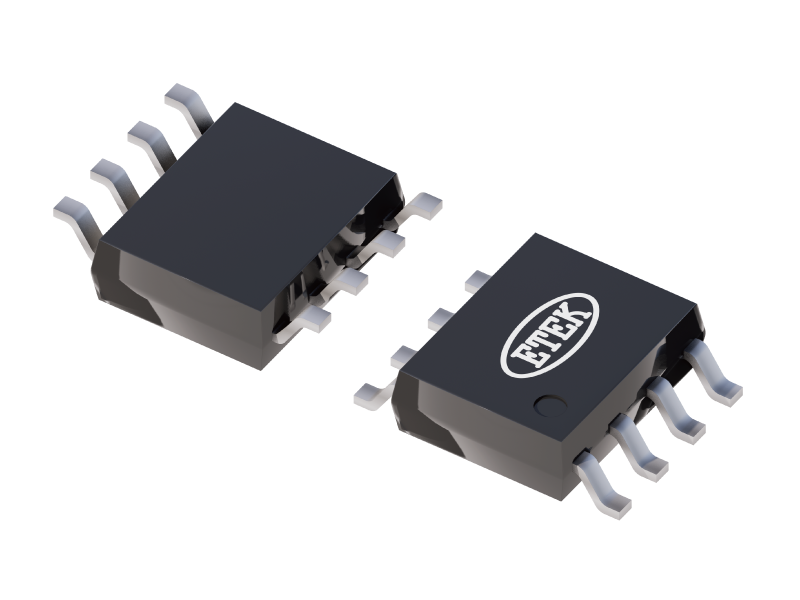

ET85602M/U/E
Contact
General Description
ET85602 is a dual low-voltage (1.8V to 5.5V) operational amplifier (op amp) with rail-to-rail input and output swing capabilities. The device is highly cost-effective solutions for applications where low-voltage operation, a small footprint, and high capacitive load drive are required.
Specification
Sample
Features
- Low input offset voltage: ±0.3 mV
- Unity-gain bandwidth: 10 MHz
- Low broadband noise: 10 nV/√Hz
- Low input bias current: ±1 pA
- Low quiescent current: 550 µA/Ch
- Operational supply voltage range 1.8 V to 5.5V
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET85602M/U/E Datasheet | 2025-10-18 |
