ET85601E/EA/SC/SCA
Contact
General Description
ET85601 is a signal low-voltage (1.8V to 5.5V) operational amplifier (op amp) with rail-to-rail input- and output- swing capabilities. The device is highly cost-effective solutions for applications where low-voltage operation, a small footprint, and high capacitive load drive are required. Although the capacitive load drive of the ET85601 is 100pF, the resistive open-loop output impedance makes stabilizing with higher capacitive loads simpler. The op amp is designed specifically for low-voltage operation (1.8V to 5.5V).

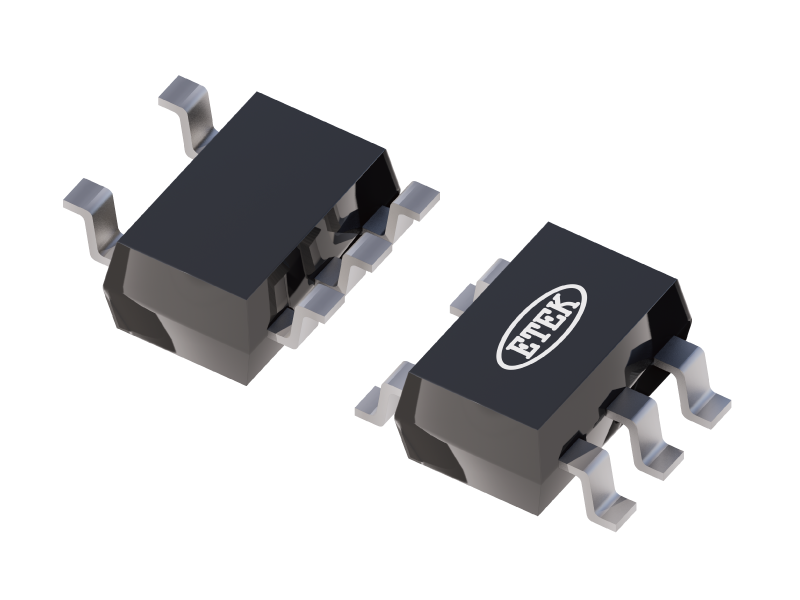

ET85601 is specified for the extended industrial/automotive temperature range (-40°C to +125°C). It is available in SOT23-5 / SC70-5 packages.
Specification
Sample
Features
- Rail-to-rail input and output
- Low input offset voltage: ±0.3 mV
- Unity-gain bandwidth: 10 MHz
- Low broadband noise: 10 nV/√Hz
- Low input bias current: ±1 pA
- Low quiescent current: 550 µA
- Unity-gain stable
- Internal RFI and EMI filter
- Operational supply voltage range 1.8 V to 5.5V
- Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
- Extended temperature range: -40°C to 125°C
