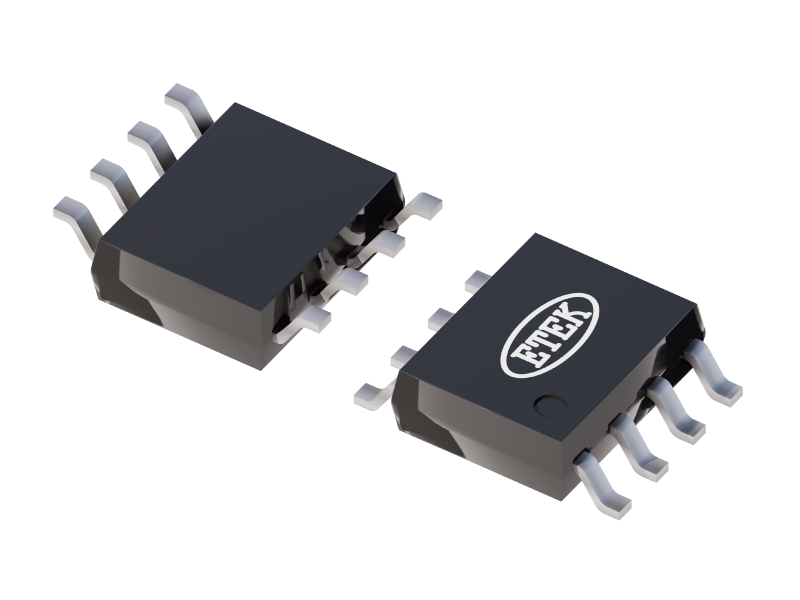

ET358M/U/Y1
Contact
General Description
ET358 is low cost, voltage feedback amplifiers. The device can operate from 2.1V to 5.5V single supply, while consuming only 60μA quiescent current per Amplifier.ET358 offers a gain-bandwidth product of 1MHz and an ultra-low input bias current of 10pA. It is well suited for piezoelectric sensors, integrators and photodiode amplifiers. The ET358 is designed into a wide range of applications, such as battery-powered instrumentation, safety monitoring, portable systems, and transducer interface circuits in low power systems.
Specification
Sample
Features
- 2.1V to 5.5V Supply Voltage
- Low offset voltage: 5 mV (MAX)
- Ultra-Low Input Bias Current: 10 pA
- Gain-Bandwidth Product: 1 MHz
- Low Power Consumption
- Dual Channels
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET358M/U/Y1 Datasheet | 2025-12-07 |
