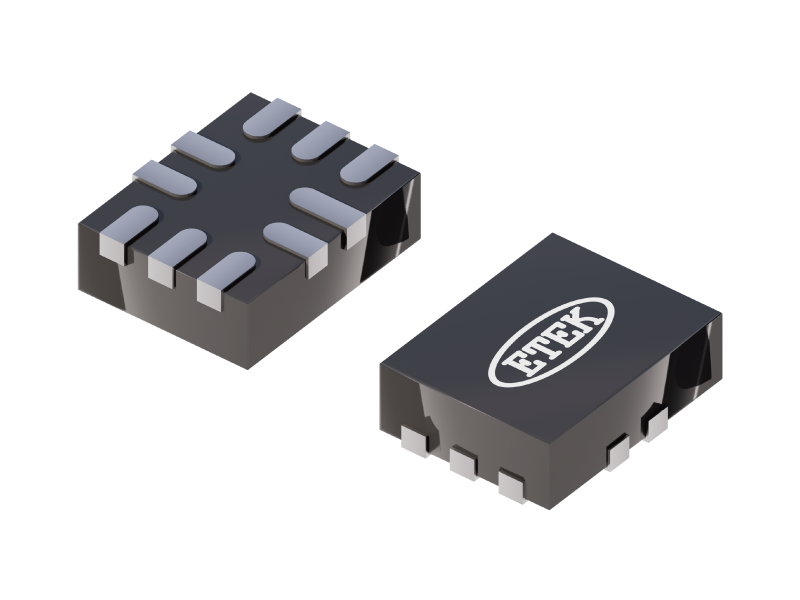

ET7222
Contact
General Description
The ET7222 is a 2CH single-pole/double-throw (SPDT) switches. Their wide bandwidth and low bit-to-bit skew allow them to pass high-speed differential signals with good signal integrity. Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Industry-leading advantages include a propagation delay of less than 250 ps, resulting from its low channel resistance and low I/O capacitance. Their high channel-to-channel crosstalk rejection results in minimal noise interference. Their bandwidth is wide enough to pass High-Speed USB 2.0 differential signals (480 Mb/s).
Specification
Sample
Features
- RON is typically 6.0 Ω @ VCC = 3.3 V
- Low Bit-to-Bit skew is typically 50 ps
- Low crosstalk is typical -37 dB @ 250 MHz
- Low current consumption is 1.0 µA max
- Near-zero propagation delay is typical 250 ps
- Channel on-capacitance is 8.0 pF typical
- VCC Operating Range from 1.65 V to 4.7 V
- ≥ 750 MHz bandwidth (or data frequency)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET7222 Datasheet | 2025-10-18 |
