ET5223
Contact
General Description

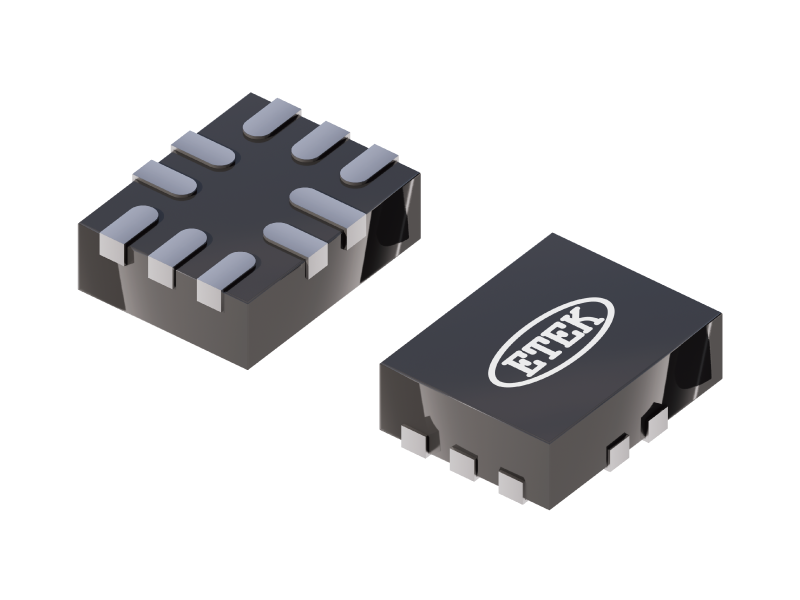

The ET5223 is an advanced CMOS analog switch fabricated in Sub-micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. ET5223 is offered QFN10L package, which is ideal for small form factor portable equipment.
Specification
Sample
Features
- Ultra-low RON≤0.5Ω @ VCC =4.3V
- Single supply operation from 1.65V to 5.5V
- Full 0V to VCC signal handling capability
- High off-channel isolation
- RON Flatness of 0.15Ω typical
- Very low standby current
- Very low distortion
- Break-Before-Make(BBM) switching
- High continuous current capability is ±300mA through each switch
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET5223 Datasheet | 2025-10-18 |
