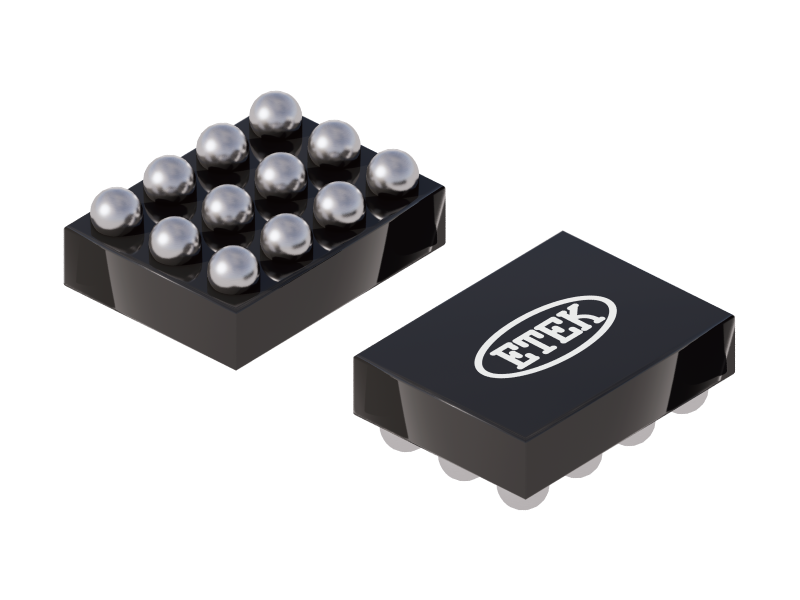

ET9540CL
Contact
General Description
ET9540CL can disconnect the systems from its output pin(OUT) in case wrong input operating conditions are detected. The system is positive over-voltage protected up to 28V. The internal over-voltage threshold(OVLO) is 6.8V.
Specification
Sample
Features
- 4.5A Continuous Current Capability
- Typical RON: 30mΩ N-Channel MOSFET
- VIN Operating Range: 2.5V to 28V
- Surge Immunity to ±100V
- Internal Over-voltage Lockout: 6.8V
- Over-voltage-Protection Response Time：50ns(TYP)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET9540CL Datasheet | 2025-10-18 |
