ET3161

General Description

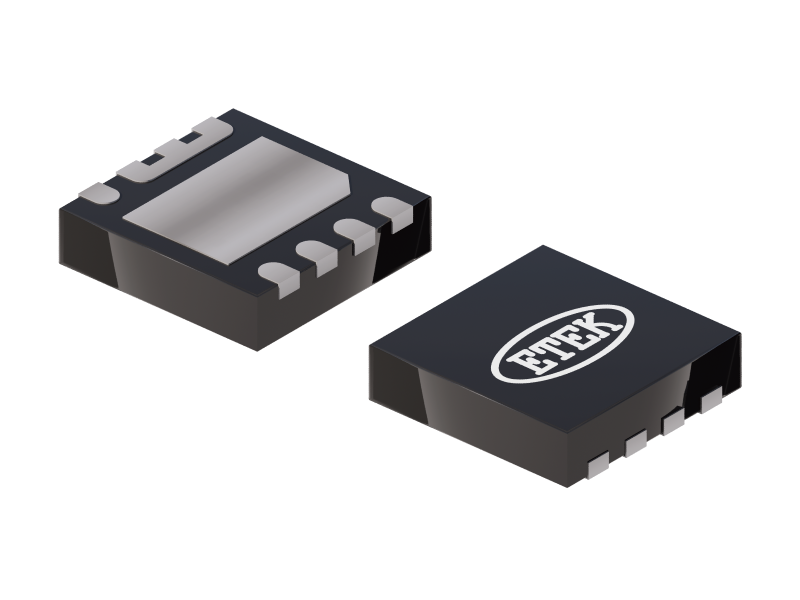

The ET3161 is a small, ultra-low Resistance, signal channel load switch with controlled turn on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8V to 3.5V and support a maximum continues current of 6A. The combination of ultra-low RON and high current capability of the device makes it ideal for driving processor rails with very tight voltage dropout tolerances. Quick rise time of the device allows for power rails to come up quickly when the device is enabled, thereby reducing response time for power distribution. The switch can be independently controlled via the ON terminal, which is capable of interfacing directly with low-voltage control signals originating from micro-controllers or low voltage discrete logic. The device further reduces the total solution size by integrating a 240Ω pull-down transistor for quick output discharge (QOD) when the switch is turned off. The ET3161 is available in a small, space-saving 3mm*3mm DFN8LQ package with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of -40°C to 85°C.
