General Description

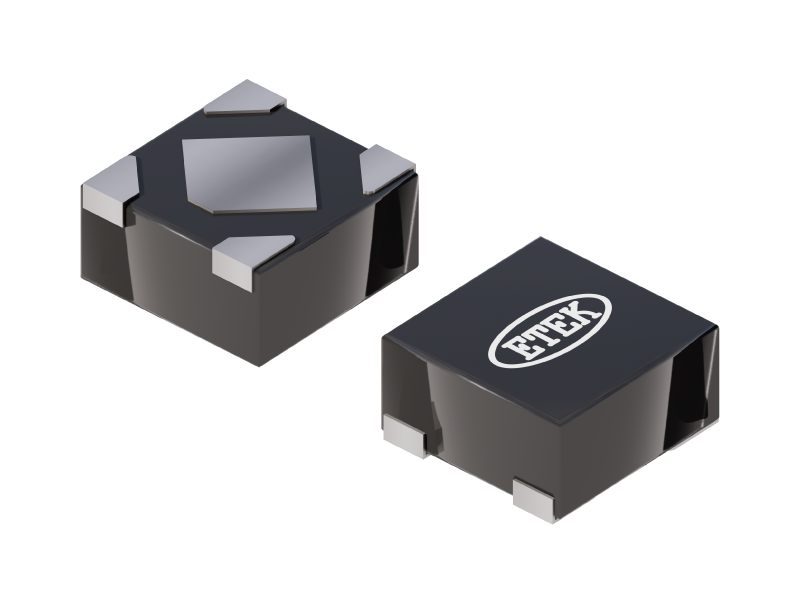

ET552XXY1B is output 500mA LDO with auto discharge function, It uses an advanced CMOS process and a PMOSFET pass device to achieve high power supply rejection ratio (PSRR) , low noise, low dropout ,low ground current, fast start-up and excellent output accuracy in low input condition. ET55233Y1B is stable with a 1.0μF ceramic output capacitor, uses a precision voltage reference and feedback loop to achieve excellent Regulation and transient response. ET55233YB is offered in a small DFN4(1×1) package, which is ideal for small form factor portable equipment .
Specification
Sample
Features
- Wide Input Voltage Range from 1.2V to 5.5V
- Very Low IQ is 55µA Typical
- Up to 500mA Load Current
- Output Voltage Accuracy is 3.3V ± 2%
- Very High PSRR is 80dB Typical @1kHz
- Low Dropout Voltage is 180mV Typical (500mA) @3.3V Output
- Excellent Load/line Transient Response
- Line regulation is 0.1%/V Typical
- Built-in Fold Back Protection Circuit
- Built-in Constant Slope Circuit
- Built-in Auto-discharging Circuit
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET552XXY1B | 2025-11-04 |
