General Description
The ET6326 is a constant current RGB LED drivers with I2C interface. The devices are ideally powered from one-celllithium-ion/polymer, 3-cell NiCd/NiMH/Alkaline batteries, or 3.3V~5V supplies.The independent programmable constantcurrent sinks operate without external components.
Specification
Sample
Features
- VIN Range: 2.7V to 5.5V
- Programmable LED setting with I2C control
- 192 current levels: 24mA max,0.125mA step
- Low supply current of 200uA typ
- Inside Temperature protection
- ±5% current matching for max current
- 0.1 uA Shutdown Current

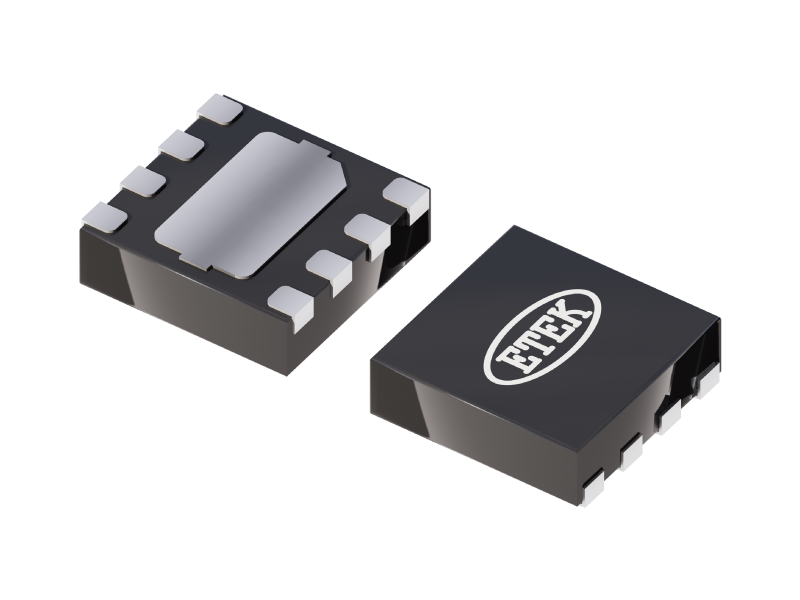

- Pb-free Package: DFN8 (1.5mm × 1.5mm × 0.45mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET6326 Datasheet | 2025-10-18 |
