General Description
ET6037Y is designed for LED displays with 128 steps linear current adjustable, built-in 18 independent low-resistance color LED driver channel, each can provide 0~45mA(register fixbrit_ledn data=52H) constant current.
Specification
Sample
Features
- 18 Constant-current Output Channels
- I2C Interface, four Chip-address can be set
- Supply Voltage：2.7V～5.5V
- Constant Output Current Range:0~45mA @VDD=5V ,0~30mA @VDD=3.3V
- Soft shutdown, Shutdown Current is less than 5uA@VDD=5V, 3uA@VDD=3.3V
- Output Current Adjusted through an External Resistor

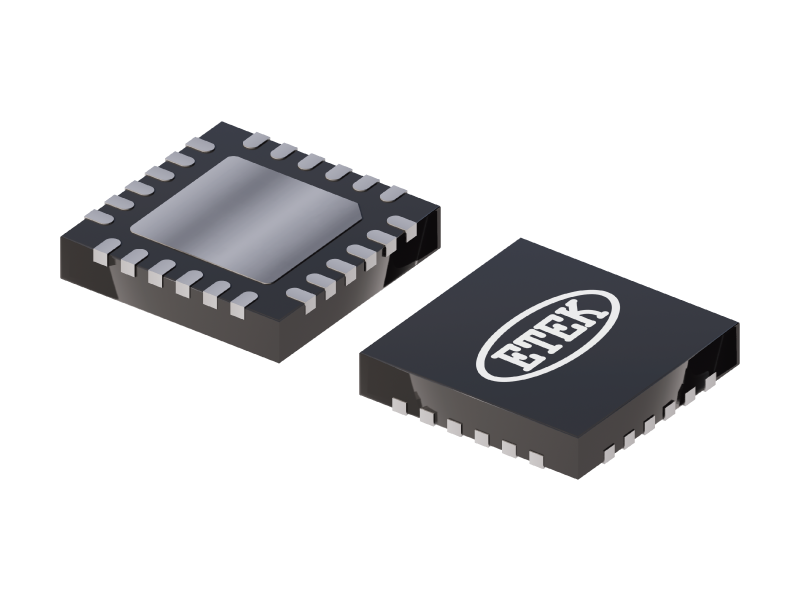

- Package: QFN24(4mm ×4mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET6037Y Datasheet | 2025-10-18 |
