ET74AHC1G17

일반 설명

The ET74AHC1G17 is a single inverter with Schmitt-trigger input. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.

사양

샘플

특징

Designed for 2V to 5.5V VCC Operation
Over-voltage Tolerant Inputs
8mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current Substantially Reduces System Power Requirements
These Devices are Pb−Free and are RoHS Compliant

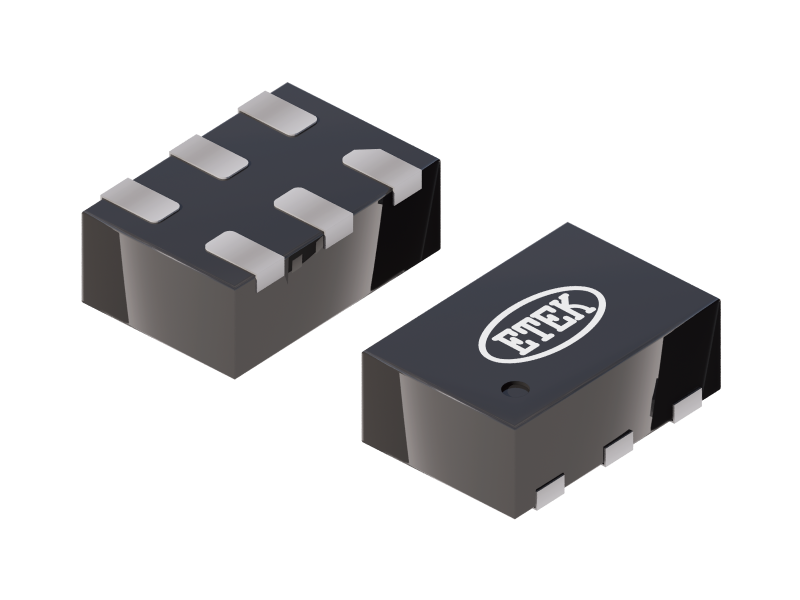

Package : SC70-5 (1.3mm × 2.1mm) : SOT23-5 (1.6mm × 2.9mm) : DFN6 (1.0mm × 1.5mm)
