ETQ6H333Y
Contact
Description générale
ETQ6H333Y is the 3.3V output high input very low IQ 200mA LDO with enable function, it have multiple protections and good heat dissipation effect. ETQ6H333Y is offered DFN8 package and operates over an ambient temperature range of -40°C to +125°C.
Spécifications
Échantillon
Caractéristiques
- Wide Input Voltage Range from 2.8V to 45V
- Fixed Output Voltage 3.3V
- Up to 200mA Load Current
- Very Low IQ is 3.0µA typical
- Low Dropout is 680mV at 200mA Load @VOUT=3.3V
- Excellente réponse transitoire charge/ligne
- High Ripple Rejection: 64dB at 1KHz
- With OCP SCP and OTP protection
- Good Heat Dissipation Performance

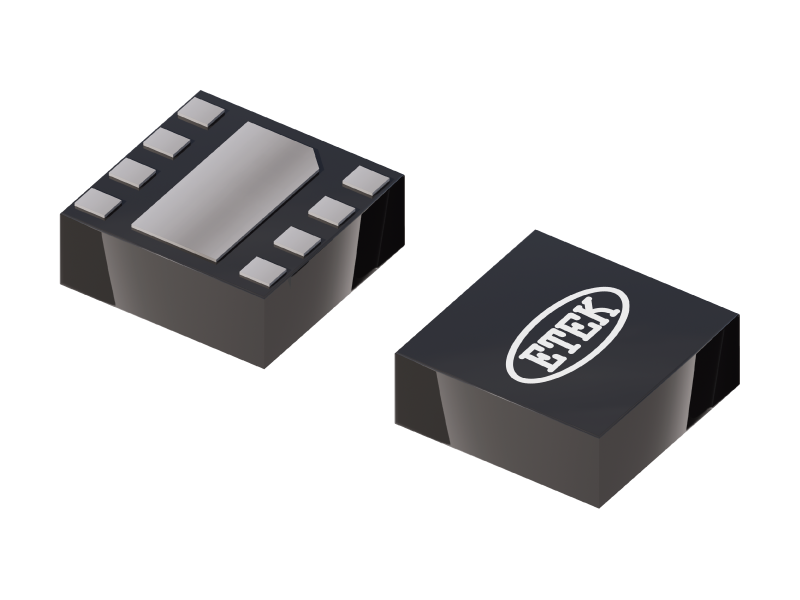

- Packages is DFN8 (3mm×3mm
Documentation technique
| Type | Titre | Format | Date |
|---|---|---|---|
| Fiche technique | ETQ6H333Y | PDF (EN ANGLAIS) | 2025-12-16 |
