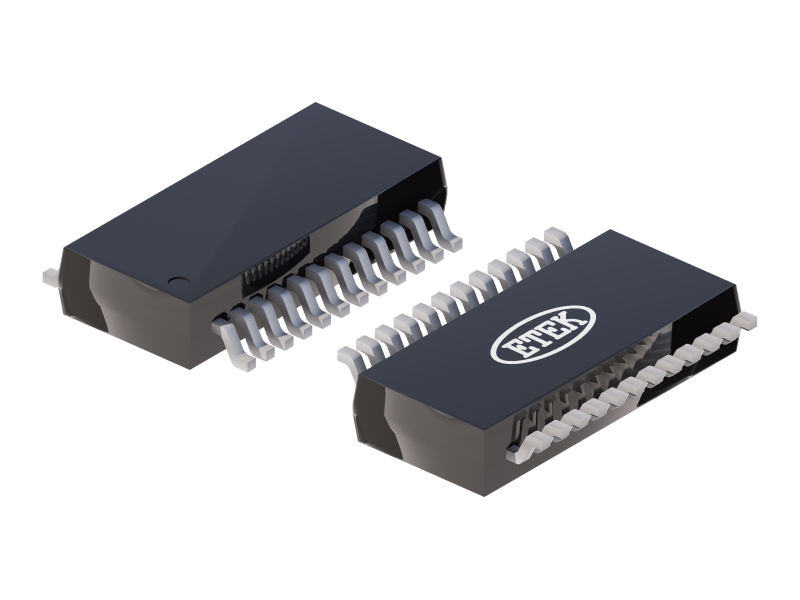

ET6024
Contact
Description générale
ET6024 is designed for LED displays. ET6024 contains a serial buffer and data latches which convert serial input data into parallel output format. At ET6024 output stage, sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of VF variations.
Spécifications
Échantillon
Caractéristiques
- 16 constant-current output channels
- Constant output current invariant to load voltage change
- Excellent output current accuracy
- Output current adjusted through an external resistor
- Constant output current range: 3～45mA
- Fast response of output current
- 25MHz clock frequency
- Schmitt trigger input
- Supply voltage：3.3V～5.5V
Documentation technique
| Type | Titre | Format | Date |
|---|---|---|---|
| Fiche technique | ET6024 | PDF (EN ANGLAIS) | 2025-11-11 |
