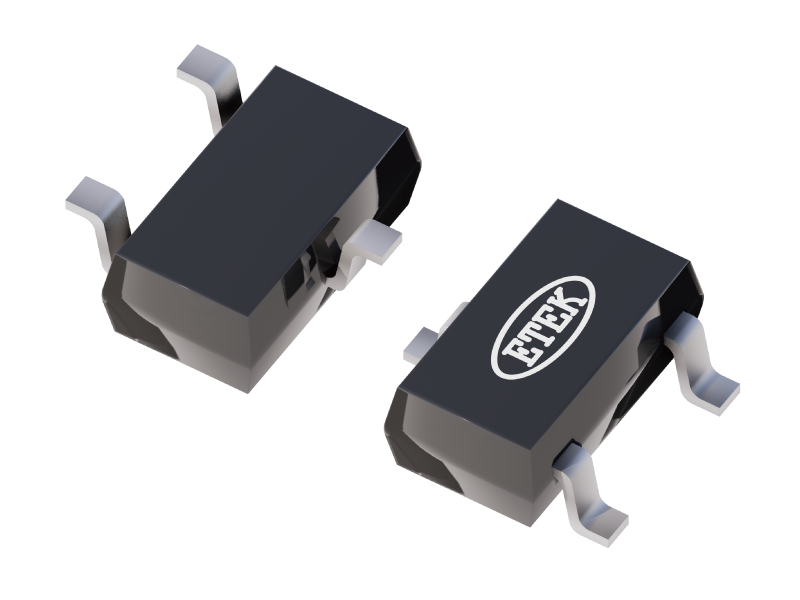

ET9818A30
Contact
General Description
The ET9818A30 is a micro-power voltage detector supervising the power supply voltage level for microprocessors (μP) or digital systems. It provides internally fixed threshold levels of 3.0V. It features low supply current of 3μA. The ET9818A30 performs supervisory function by sending out a reset signal whenever the VDD voltage falls below a preset threshold level. This reset signal will last the whole period before VDD recovering. Once VDD recovered up crossing the threshold level, the reset signal will be released after a certain delay time.
Specification
Sample
Features
- Internally Fixed Threshold 3.0V
- High Accuracy ±1.5%
- Low Supply Current 3μA
- No External Components Required
- Quick Reset within 3μs
- Built-in Recovery Delay 10μs
- Low Functional Supply Voltage 0.9V
- N-Channel Open-Drain Output
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET9818A30 Datasheet | 2025-11-07 |
