ET85501E/EA/M General Description
ET85501 is a high-precision amplifiers featuring rail-to-rail input and output swings respectively and has ultra low offset, drift, and bias current. Either single or dual supplies can be used in the range from 2.7V to 5V with a single supply.
ET85501 provides the benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. These new zero-drift amplifiers combine low cost with high accuracy. No external capacitors are required.
ET85501 is perfectly suited for applications where error sources cannot be tolerated, since the offset voltage is only 1μV and the drift is 0.005 μV/°C. With nearly zero drift over operating temperature range, medical equipment, temperature, position and pressure sensors, and strain gauge amplifiers all benefit greatly . The rail-to-rail input and output swings provided by the ET85501 make both high-side and low-side sensing easy.
ET85501 is specified for the extended industrial/automotive temperature range (-40°C to +125°C).

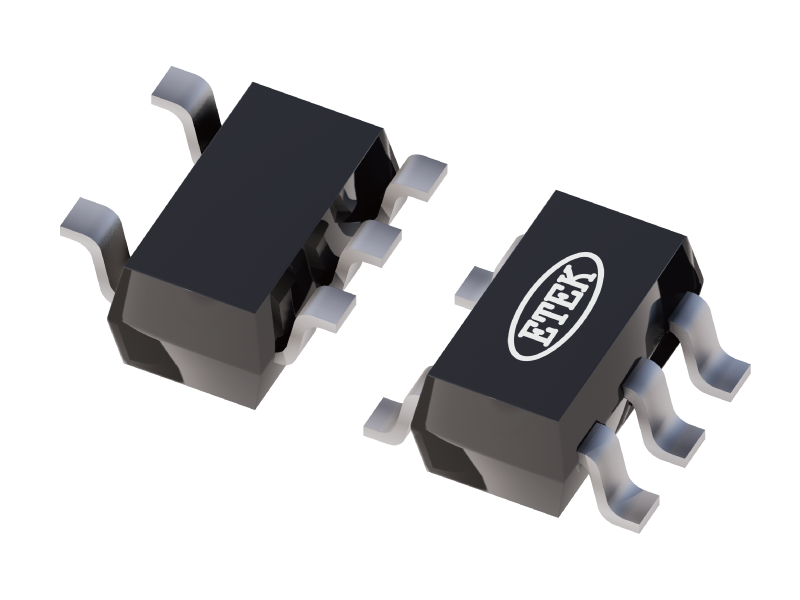

ET85501 single amplifier is available in SOP8 and SOT23-5 packages.
Specification
Sample
ET85501E/EA/M Key Features
- Low offset voltage : 1 μV
- Input offset drift : 0.005 μV/°C
- Overload recovery time : 50 μs
- Low supply current : 770 μA
- High gain, CMRR, PSRR : 130 dB
- Ultra low input bias current : 20 pA
- No external capacitors required
- 2.7 V to 5.0 V single-supply operation
- Package: SOP8; SOT23-5
