General Description

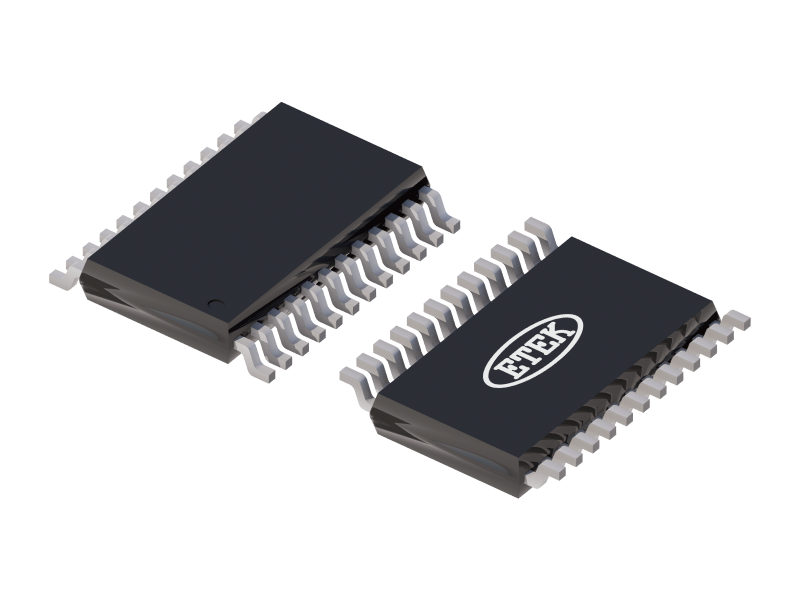

The ETQ74LVCH8T245V is an 8-bit non-inverting bus transceiver that uses two separate configurable power supply rails.The device is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs,the A-port outputs,or place both output ports into a high-impedance state.The control pins (DIR and OE) are referenced to VCCA. ETQ74LVCH8T245V offered in a small TSSOP24 package and operates over an ambient temperature range of -40°C to +125°C
Specification
Sample
Features
- Control Inputs (DIR and OE) VIH and VIL Levels are Referenced to VCCA
- Bus Hold on Data Inputs Eliminates the Need for External Pull-up and Pull-down Resistors
- VCC Isolation
- Fully Configurable Dual-Rail Design
- Ioff Supports Partial-Power-Down Mode Operation
- Automotive AEC-Q100 Grade 1 Qualified
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ETQ74LVCH8T245V Datasheet | 2025-11-07 |
