ET6416
Contact
General Description
The ET6416 is a 16-bit I²C-bus I/O expander with bidirectional voltage translation (1.65V-5.5V), 5V tolerant I/Os, ultra-low power consumption, and The maximum driving capability of IO is 25mA,can directly drive leds.
Specification
Sample
Features
- 1.65V to 5.5V Operating Voltage
- 16-bit Bidirectional I/O Ports
- 1.0uA Low Standby Current
- 25mA Drive Capability per I/O
- Interrupt Output & Hardware Reset

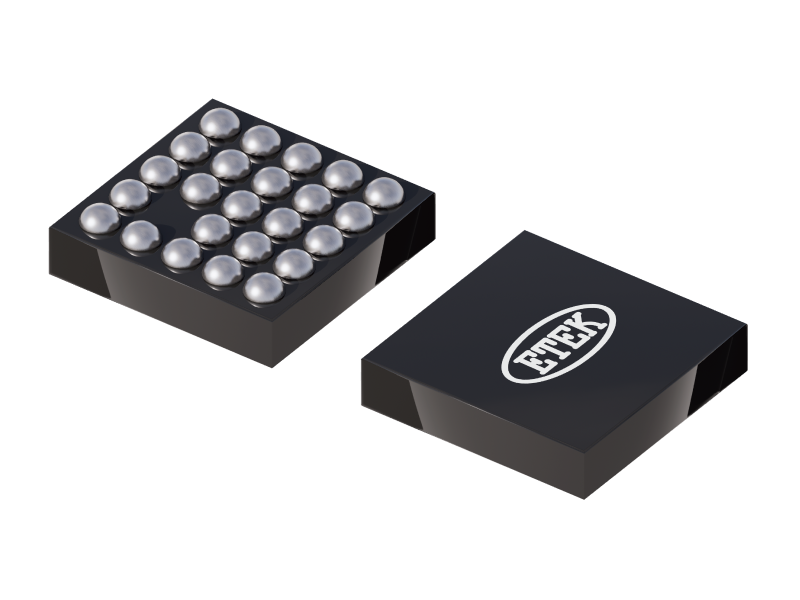

- package:VFBGA24(3mm × 3mm × 0.85mm)
