General Description

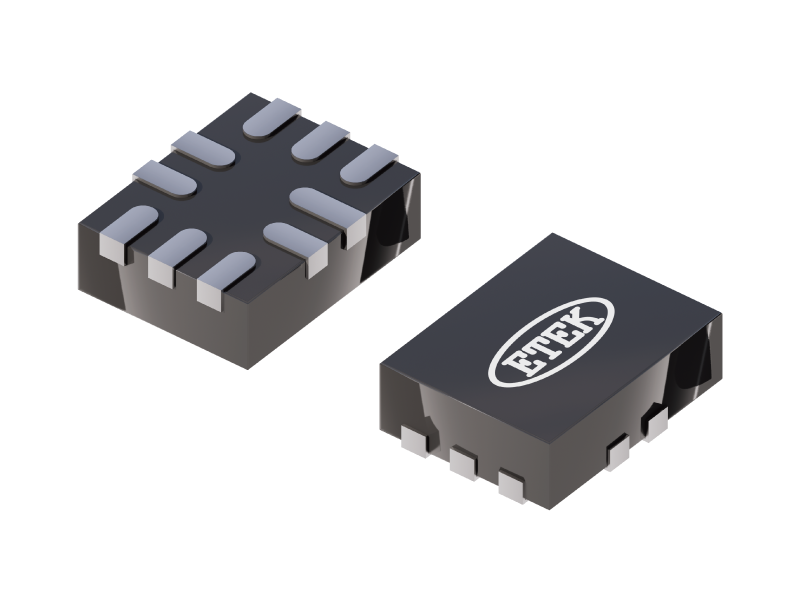

The ET5228 is an advanced CMOS analog switch fabricated in Sub-micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. The switches can handle negative signal down to -2V. ET5228 is offered QFN10L package, which is ideal for small form factor portable equipment.
Specification
Sample
Features
- Low RON is typical 0.4Ω @ VCC =3.3V
- Single supply operation from 1.65V to 5.5V
- Full -2V to VCC signal handling capability
- High off-channel isolation
- Very low standby current
- Very low distortion
- Break-Before-Make(BBM) switching
- High continuous current capability is ±300mA through each switch
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET5228 Datasheet | 2025-11-12 |
