ET3167
Contact
General Description

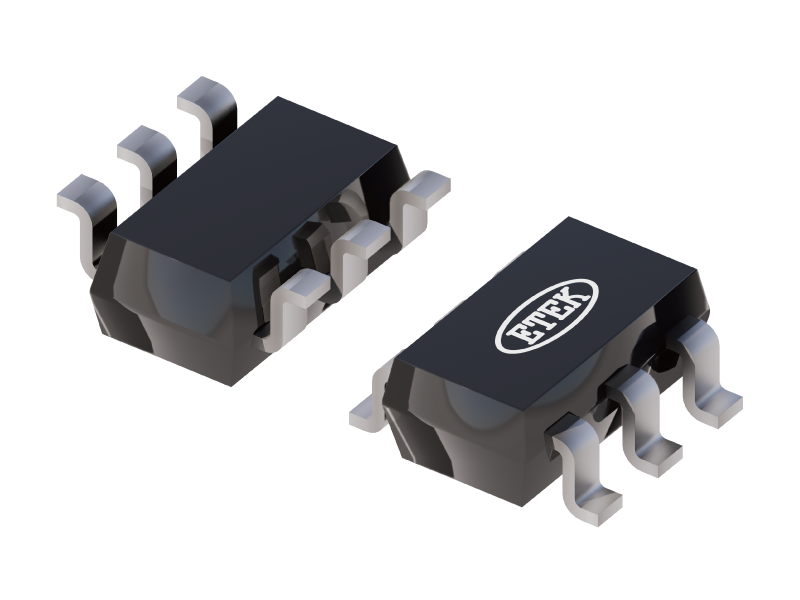

The ET3167 is a bidirectional, SPDT (single-pole/ double-throw), CMOS analog switch. It operates from a 1.8V to 5.5V single power supply. The ET3167 features high bandwidth, low on resistance and low distortion. The high performances make it very suitable for multiple applications, such as portable equipment, audio and video signal routing, etc. Low power consumption is also one of the important reasons that make it a good choice.
Specification
Sample
Features
- Single Supply Voltage Range: 1.8V to 5.5V
- Low On-Resistance: 26Ω (TYP) at V+=5V
- Low On-Resistance Flatness
- -3dB Bandwidth: 500MHz
- High Off-Isolation: -63dB at 10MHz
- Rail-to-Rail Input and Output Operation
- TTL/CMOS Compatible
- Break-Before-Make Switching
- -40℃ to +85℃ Operating Temperature Range
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET3167 Datasheet | 2025-11-12 |
