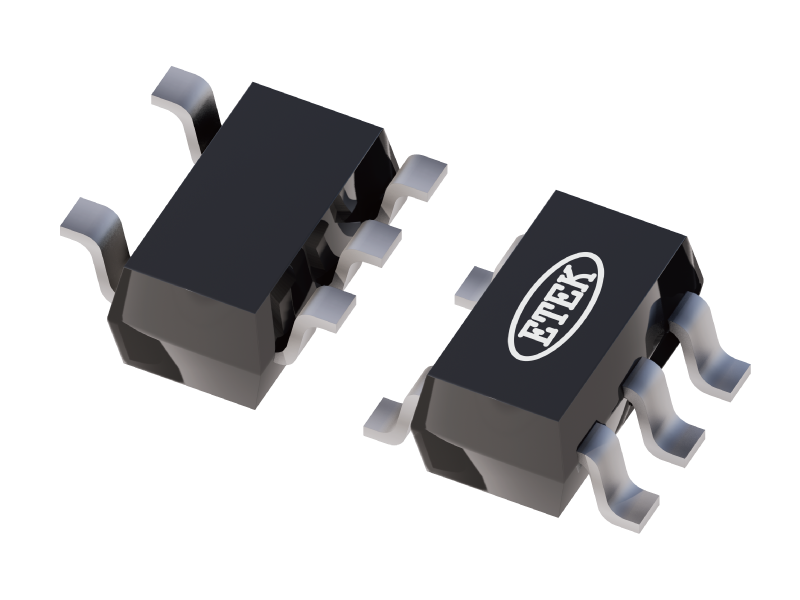

ETQ74LVC1G79
Contact
General Description
The ETQ74LVC1G79 is a single positive edge triggered D-type flip-flop, Data at the D-input that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition will be stored in the flip-flop and appear at the Q output. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V environments. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging back-flow current through the device when it is powered down.
Specification
Sample
Features
- Wide Supply Voltage Range from 1.65V to 5.5V
- Over-voltage Tolerant Inputs Accept Voltages to 5.5V
- High Noise Immunity
- ±24mA Output Drive (VCC = 3.0V)
- CMOS Low Power Consumption
- Direct Interface with TTL Levels
- IOFF Circuitry Provides Partial Power-down Mode Operation
- Multiple Package Options Automotive AEC-Q100 Grade 1 Qualified
- -- Ambient Temperature Range of -40°C to 125°C
- -- ESD HBM ±4KV PASS
- -- ESD CDM ±1.5KV PASS
- -- Latch Up Current to ±200mA PASS
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ETQ74LVC1G79 | 2026-03-11 |
