ET74LVC1G19
Contact
General Description
The ET74LVC1G19 is a high-performance 1-to-2 demultiplexer / Decoder. This device buffers the data on input A and passes it to the outputs 1Y (True) and 2Y (Complement) when the enable (E̅) input signal is LOW.A HIGH E̅ causes both outputs to assume a HIGH state. The device operates over the voltage range from 1.65V to 5.5V.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- High-Speed Propagation Delay tpd 2.5ns (Typ)@3.3V, Load 50pF
- Power Down Impedance Outputs in High-Z
- ±32mA Balanced Output Sink and Source Output Capability
- These Devices are Pb-Free and RoHS Compliant
- ESD Protection Complies with JESD22 Standard
- -- HBM: ±4000V Pass (JEDEC JS-001)
- -- CDM: ±1000V Pass (JEDEC JS-002)
- Latch-up Performance Exceeds ±100mA per JEDEC JESD78F

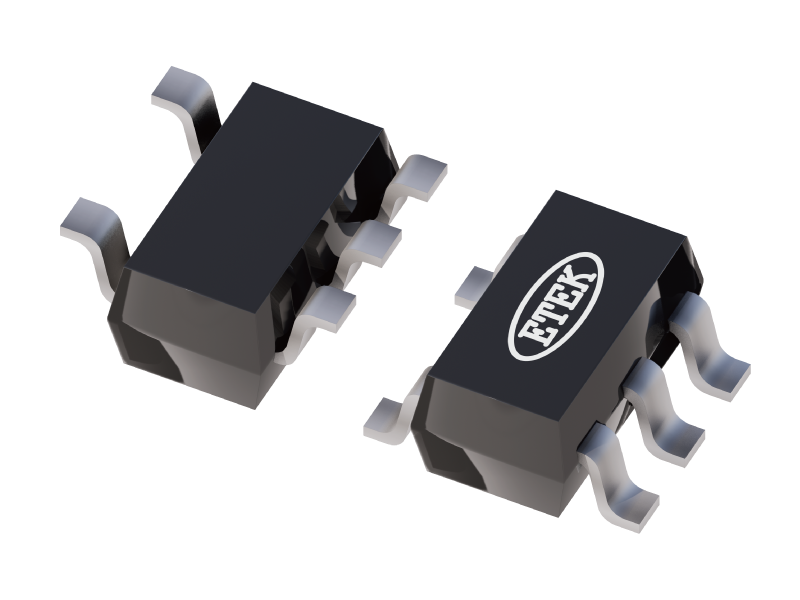

- Package Information：SC70-6 (1.3mm × 2.1mm)；SOT23-6 (1.6mm × 2.9mm)；DFN6 (1.0mm × 1.5mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G19 | 2026-07-28 |
