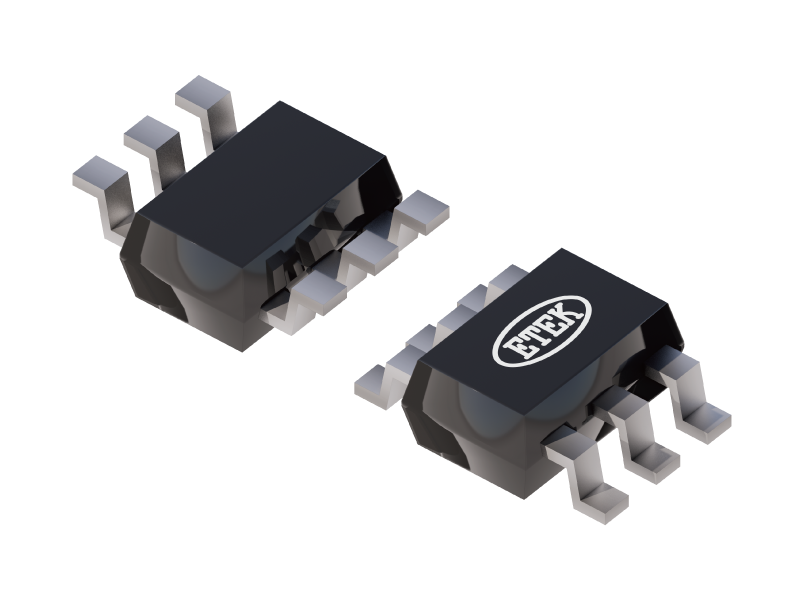

ET74LVC1G57
Contact
General Description
The ET74LVC1G57 is a configurable multiple function gate with Schmitt-trigger inputs. The device can be configured as any of the following logic functions AND, OR, NAND, NOR, XNOR, inverter and buffer; using the 3-bit input. All inputs can be connected directly to VCC or GND. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging back-flow current through the device when it is powered down.
Specification
Sample
Features
- Wide Supply Voltage Range from 1.65 V to 5.5 V
- Over-voltage Tolerant Inputs to 5.5 V
- High Noise Immunity
- ±24 mA Output Drive (VCC = 3.0 V)
- CMOS Low Power Dissipation
- Direct Interface with TTL Levels
- IOFF Circuitry Provides Partial Power-down Mode Operation
- Latch-up Performance Exceeds 200 mA
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G57 Datasheet | 2025-11-06 |
