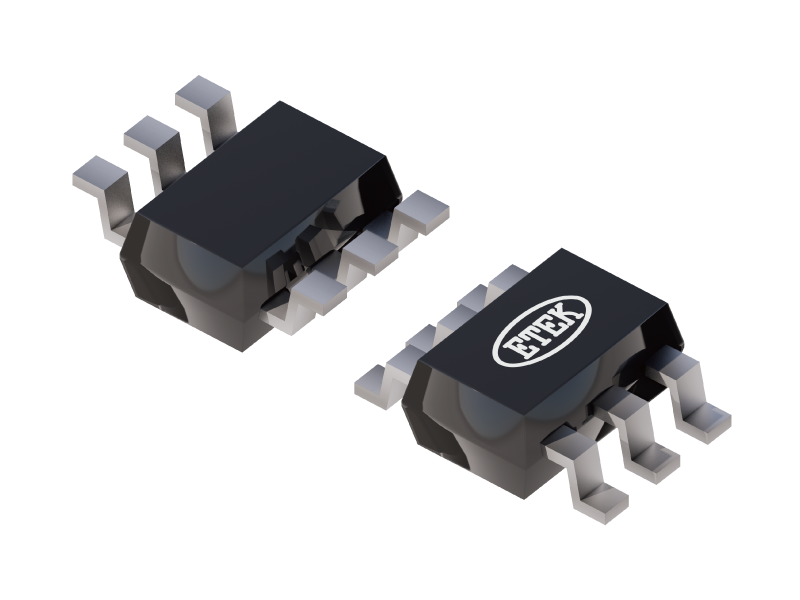

ET74LVC1G27
Contact
General Description
The ET74LVC1G27 provides one 3-input NOR function. The input can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- High Noise Immunity
- ±24 mA Output Drive (VCC = 3.0 V)
- CMOS Low Power Consumption
- Latch-up Performance Exceeds 100 mA
- Direct Interface with TTL Levels
- Inputs Accept Voltages up to 5 V
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G27 Datasheet | 2025-12-07 |
