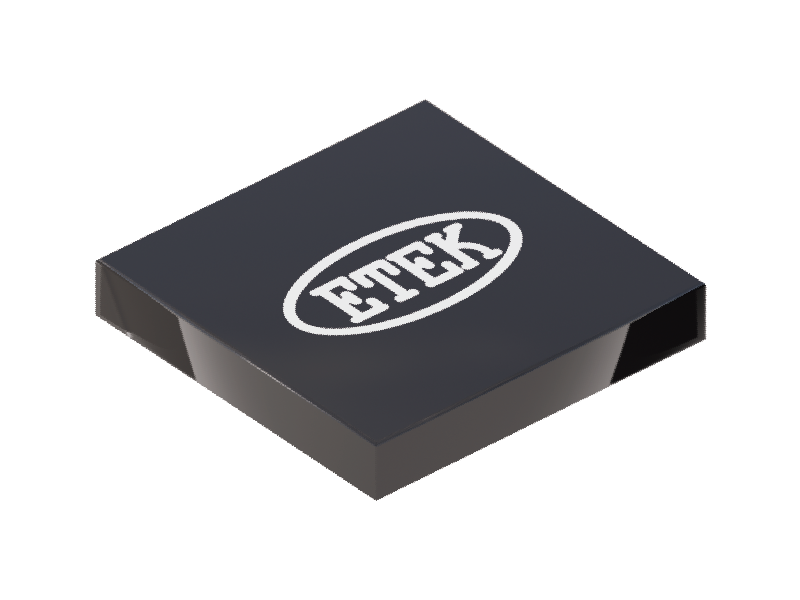

ET74LVC1G10
Contact
General Description
The ET74LVC1G10 is a single 3-input positive-NAND gate operating from a 1.65V to 5.5V supply. This device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- Over-voltage Tolerant Inputs Accept Voltages to 5.5V
- ±32mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb-Free and RoHS Compliant
- ESD Protection Complies with JESD22 Standard
- -- HBM: ±2000V Pass (JEDEC JS-001)
- -- CDM: ±1000V Pass (JEDEC JS-002)
- Latch-up Performance Exceeds ±100mA per JEDEC JESD78F
- Package Information：SC70-6 (1.3mm × 2.1mm)；SOT23-6 (1.6mm × 2.9mm)；DFN6 (1.0 mm × 1.5 mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G10 | 2026-02-09 |
