ET74LVC00A
Contact
General Description
The ET74LVC00A contains four independent 2-input NAND gates operating from a 1.65V to 5.5V supply.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- Over-voltage Tolerant Inputs Accept Voltages to 5.5V
- ±24mA Balanced Output Sink and Source Capability
- Near-zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb-Free and RoHS Compliant
- ESD Protection Complies with JESD22 Standard
- Latch-up Performance Exceeds ±200mA per JEDEC JESD78F

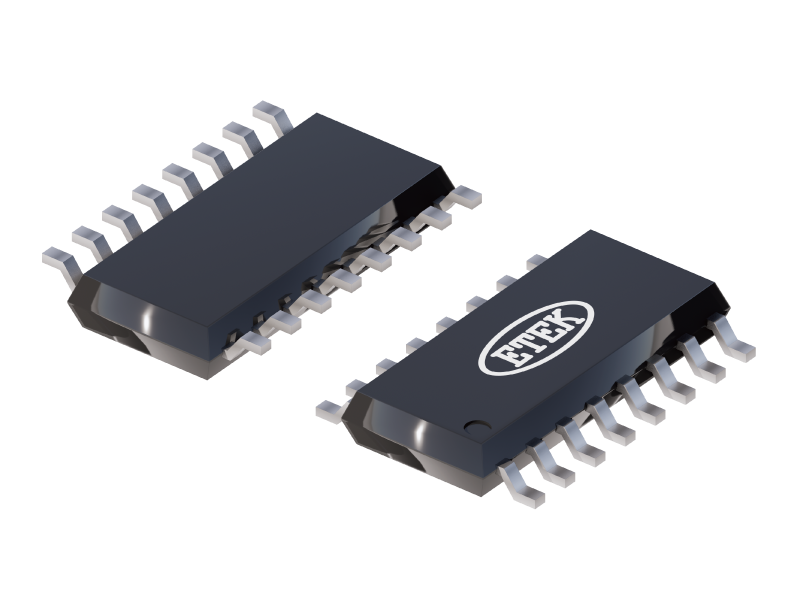

- Package：SOP14 (8.65 mm × 6 mm)；TSSOP14 (4.96 mm × 6.4 mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC00A | 2026-08-19 |
