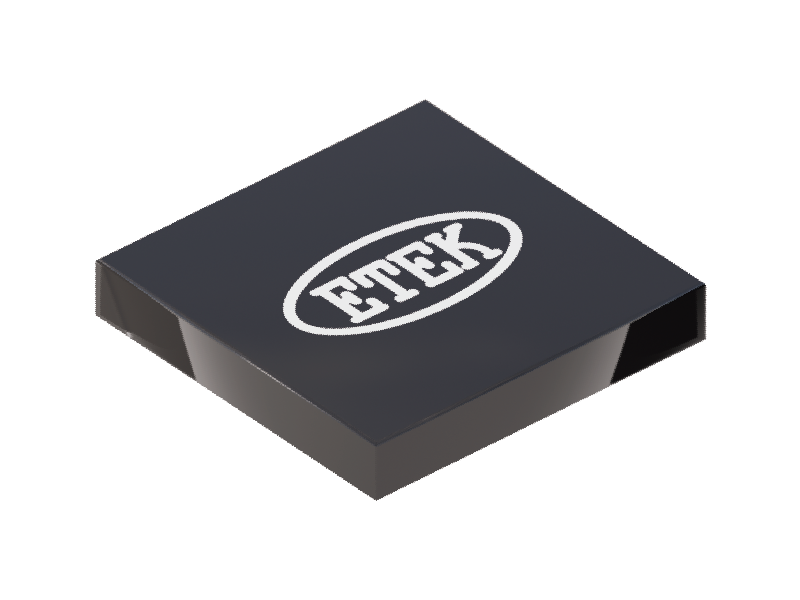

ET74AHCT1G86

General Description

The ET74HCT1G86 is a single 2-input exclusive-OR gate. The device performs the Boolean function Y = A ⊕ B or Y =AB + AB in positive logic.

Designed for 4.5V to 5.5V VCC Operation
Over-voltage Tolerant Inputs Accept Voltages to 5.5V
±8mA Balanced Output Sink and Source Capability
Near-zero Static Supply Current Substantially Reduces System Power Requirements
These Devices are Pb-Free and RoHS Compliant
ESD Protection Complies with JESD22 Standard
-- HBM: ±4000V Pass (JEDEC JS-001)
-- CDM: ±1000V Pass (JEDEC JS-002)
Latch-up Performance Exceeds ±100mA per JEDEC JESD78F
Package Information：SC70-5 (1.3mm × 2.1mm)；SOT23-5 (1.6mm × 2.9mm)；DFN6 (1.0mm × 1.5mm)

Type	Title	Format	Date
Datasheet	ET74HCT1G86	PDF	2026-07-16

Samples
