ETQ74LVC1G125
Contact
General Description
The ETQ74LVC1G125 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is high. When OE is low, data is passed from the A input to the Y output.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- Over-voltage Tolerant Inputs Accept Voltages to 5.5V
- ±32mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb-Free and RoHS Compliant
- 3-State OE Input is Active-Low
- Multiple Package Options Automotive AEC-Q100 Grade 1 Qualified
- -- Ambient Temperature Range of -40°C to 125°C
- -- ESD HBM ±4KV PASS
- -- ESD CDM ±1KV PASS
- -- Latch Up Current to ±100mA PASS

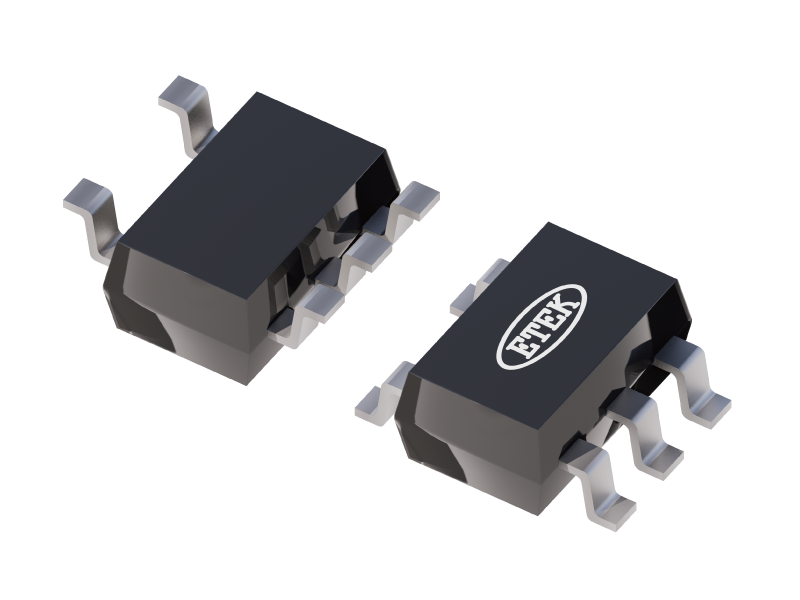

- Package Information：SC70-5 (1.3mm × 2.1mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ETQ74LVC1G125 | 2026-07-16 |
