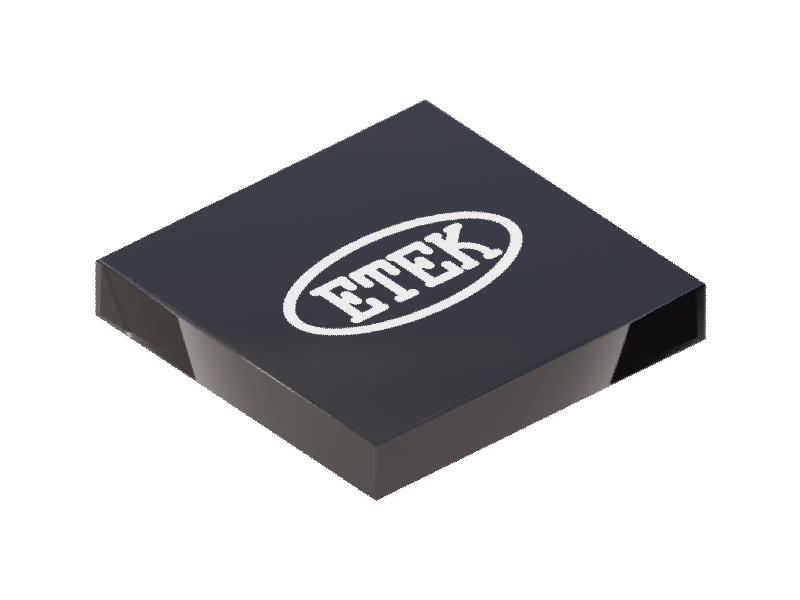

ET74LVC1G16
Contact
General Description
The ET74LVC1G16 provides a low-power, low-voltage single buffer. The input can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. Schmitt trigger action at all inputs makes the circuit highly tolerant of slower input rise and fall times.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- 5 V Tolerant Inputs for Interfacing with 5 V Logic
- High Noise Immunity
- ±24 mA Output Drive (VCC = 3.0 V)
- CMOS Low Power Consumption
- Latch-up Performance Exceeds 100 mA
- Direct Interface with TTL levels
- Inputs Accept Voltages up to 5 V
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G16 Datasheet | 2025-12-07 |
