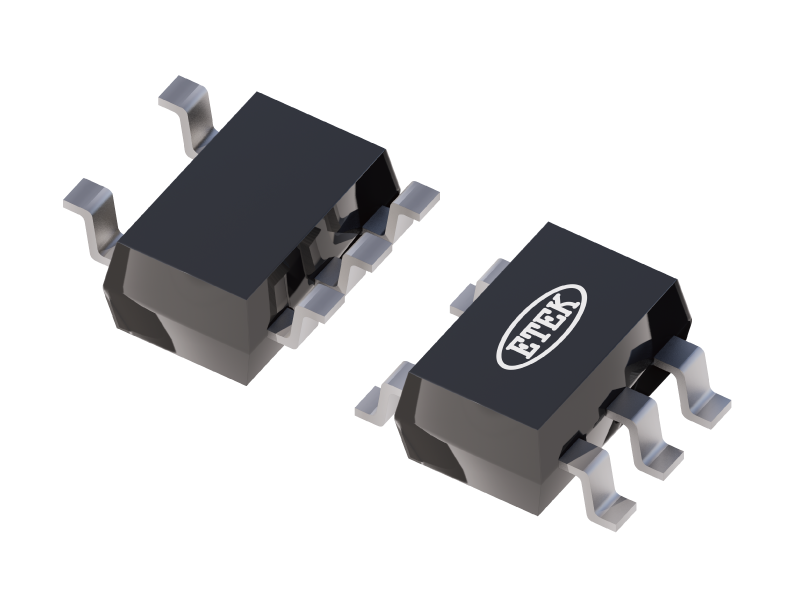

ET74LVC1G126
Contact
General Description
The ET74LVC1G126 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is low. When OE is high, data is passed from the A input to the Y output.
Specification
Sample
Features
- Designed for 1.65V to 5.5V VCC Operation
- Over-voltage Tolerant Inputs Accept Voltages to 5.5V
- ±32mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb-Free and RoHS Compliant
- 3-State OE Input is Active-High
- ESD Protection Complies with JESD22 Standard
- Latch-up Performance Exceeds ±100mA per JEDEC JESD78F
- Package Information：SC70-5 (1.3mm × 2.1mm)；SOT23-5 (1.6mm × 2.9mm)；DFN6 (1.0mm × 1.0mm × 0.37mm)；DFN6 (1.0mm × 1.0mm × 0.55mm)；DFN4 (0.8mm × 0.8mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G126 | 2026-09-14 |
