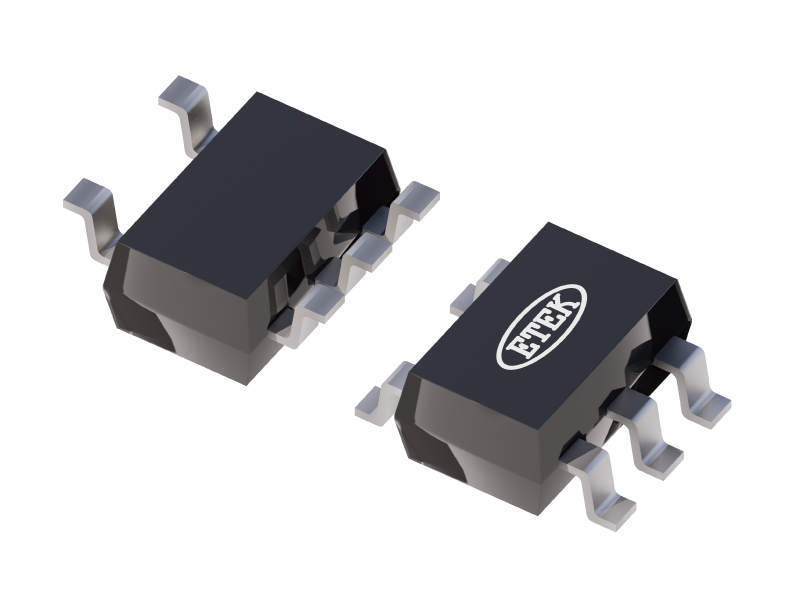

ET74LVC1G06
Contact
General Description
The ET74LVC1G06 is a high-performance single inverter with open drain outputs operating from a 1.65V to 5.5V supply. The Output stage is open drain with Over Voltage Tolerance. This allows the ET74LVC1G06 to be used to interface 5.0V circuits to circuits of any voltage between 0 and +7.0V.
Specification
Sample
Features
- Extremely High Speed: tPD =2.5ns (typical) at VCC= 5.0V
- Designed for 1.65V to 5.5V VCC Operation, CMOS Compatible
- Over Voltage Tolerant Inputs VIN may be Between 0 and 7.0V for VCC Between 0.5 and 5.5V
- 24mA Output Sink Capability, Pull-up may be between 0 and 7.0V
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant in Configuration
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74LVC1G06 | 2025-11-03 |
