ET74LVC04A

General Description

The ET74LVC04A contains six independent inverters operating from a 1.65V to 5.5V supply. They perform the Boolean function Y = Α in positive logic.

Designed for 1.65V to 5.5V VCC Operation
Over-voltage Tolerant Inputs Accept Voltages to 5.5V
Outputs Can Drive up to 10 LSTTL Loads
Low Power Consumption ICC = 20µA Max
Typical tpd = 8ns at 5V
±32mA Balanced Output Sink and Source Capability
Low Input Current of 1μA MAX
ESD Protection Complies with JESD22 Standard
-- HBM: ±4000V Pass (JEDEC JS-001)
-- CDM: ±1000V Pass (JEDEC JS-002)
Latch-up Performance Exceeds ±100mA per JEDEC JESD78F

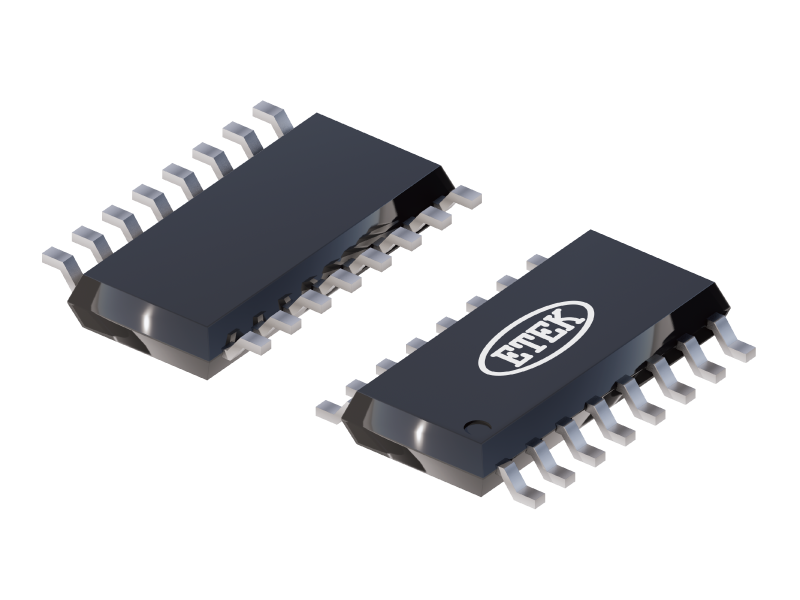

Package Information：SOP14 (8.65mm × 3.90mm)；TSSOP14 (4.96mm × 4.40mm)；DIP14 (19.10mm × 6.35mm)
