ET74AUP1G125
Contact
General Description
The ET74AUP1G125 is a single Buffer with 3−State output from ultra-low power series, which can operate from a 0.8V to 3.6V supply. This device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive.
Specification
Sample
Features
- Designed for 0.8V to 3.6V VCC Operation
- ±4mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- These Devices are Pb-Free and RoHS Compliant
- ESD Protection Complies with JESD22 Standard
- -- HBM: ±4000V Pass (JEDEC JS-001)
- -- CDM: ±1000V Pass (JEDEC JS-002)
- Latch-up Performance Exceeds ±100mA per JEDEC JESD78

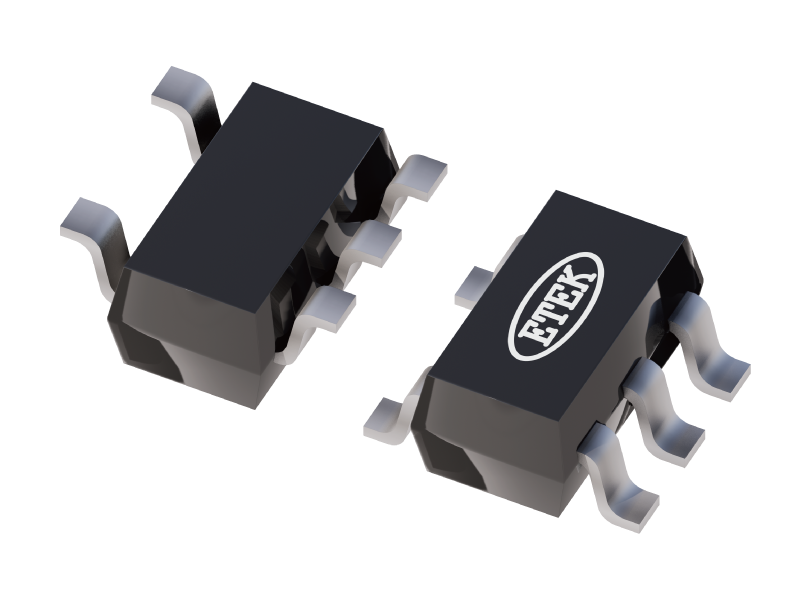

- Package Information：SC70-5 (1.3mm × 2.1mm)；SOT23-5 (1.6mm × 2.9mm)；DFN6 (1.0mm × 1.5mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET74AUP1G125 | 2026-07-16 |
