ET9930Y General Description
ET9930Y can disconnect the systems from its output pin (OUT) in case wrong input operating conditions are detected. The system is positive over-voltage protected up to 33V. The internal over-voltage threshold(OVLO) is 6.1V. ET9930Y has over current protection, internal thermal shutdown protection and input voltage detection.

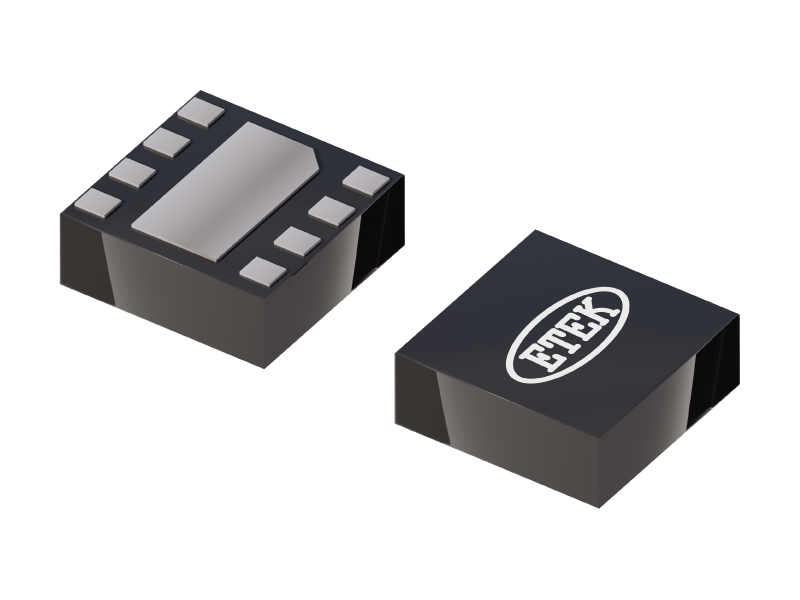

The device is packaged in advanced full-Green compliant DFN8(2.0mm ×2.0mm) package.
Specification
Sample
ET9930Y Key Features
- 2A Continuous Current Capability
- Typical RON: 105mΩ N-Channel MOSFET
- VIN Operating Range: 3.5V to 30V
- Over-Voltage Protection (OVP) threshold: 6.1V (TYP)
- Over-Voltage Protection Response Time: 50ns (TYP)
- Input Reverse Protection to -15V
- Internal Thermal-Shutdown Protection
- Programmed Over-Current Protection
- ESD Protected: Human Body Model (JS-001-2024) All pins ±2KV Pass
- Package: DFN8 (2.0mm ×2.0mm)
