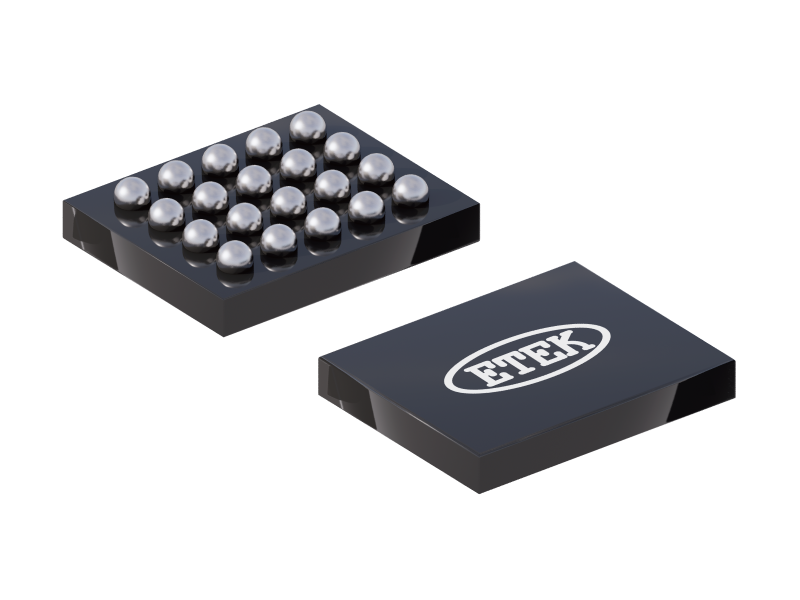

ET9668
Contact
General Description
ET9668 can disconnect the systems from its output pin(OUT) in case wrong input operating conditions are detected. The input voltage can be up to 28V. The internal overvoltage thresholds (OVLO) can be selected by OVLO_SEL pin. When OVLO_SEL is HIGH, the overvoltage point is 21.9V, and the overvoltage point when OVLO_SEL is grounded is 12.4V.
Specification
Sample
Features
- 6A Continuous Current Capability
- Typical RON: 9mΩ N-Channel MOSFET
- VIN Operating Range: 2.8V to 28V
- Surge Immunity to ±200V
- Overvoltage Lockout : OVLO=21.9V(OVLO_SEL=HIGH) / 12.4V(OVLO_SEL=GND)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET9668 Datasheet | 2025-11-12 |
