ET9650M1

Email Inquiry IconContact

General Description

ET9650M1 can disconnect the systems from its output pin(OUT) in case wrong input operating conditions are detected. The system is positive over-voltage protected up to 28V. The internal over-voltage threshold(OVLO) is 10.5V.

ET9650M1 has internal Thermal-Shutdown Protection and Input Voltage detection.

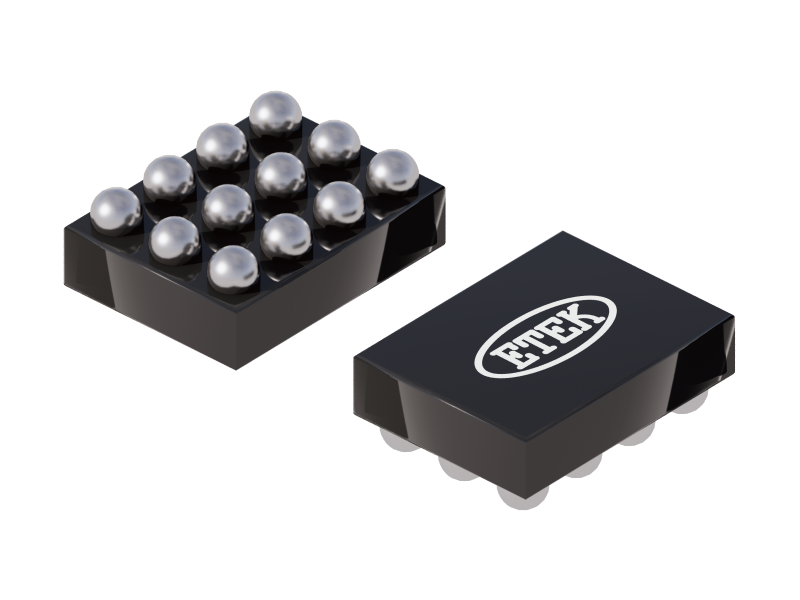

The device is packaged in advanced full-Green compliant WLCSP12 package.

Features

  • 6A Continuous Current Capability
  • Typical RON: 15mΩ N-Channel MOSFET
  • VIN Operating Range: 2.5V to 28V
  • Internal Over-voltage Lockout: 10.5V
  • Over-voltage-Protection Response Time:50ns(TYP)
  • Startup Debounce Time:15ms(TYP)
  • Internal Thermal-Shutdown Protection
  • Surge Immunity to ±100V
  • ESD Protected: Human Body Model (JESD22-A114) All pins ±2KV Pass
  • MSL 1
  • Package: WLCSP12 (1.90mm×1.29mm 0.4mm pitch)

Technical Documentation

Type Title Format Date
Datasheet ET9650M1 PDF 2026-10-16
