ET9551M

Email Inquiry IconContact

General Description

ET9551M can disconnect the systems from its output pin(OUT) in case wrong input operating conditions are detected. The input voltage can be up to 28V. The internal over-voltage threshold (OVLO) is 12.1V, and also can be adjusted by external resistors. ET9551M has internal Thermal-Shutdown Protection function.

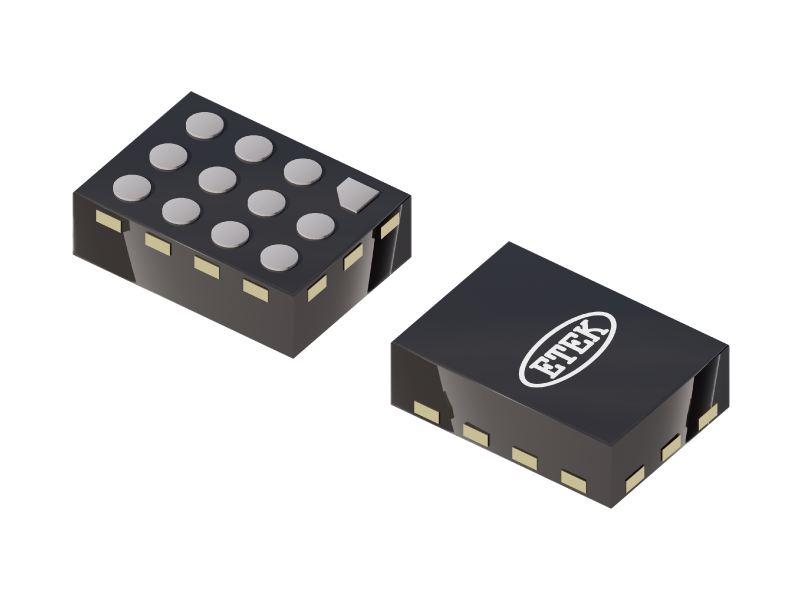

The device is packaged in advanced full-Green compliant FCQFN-12 1.8mm×1.3mm package.

Features

  • 4.8A Continuous Current Capability
  • Typical RON: 32mΩ N-Channel MOSFET
  • VIN Operating Range: 2.5V to 28V
  • Overvoltage Lockout: VOVLO=12.1V(TYP)
  • Overvoltage-Protection Response Time: 50ns(TYP)
  • OVLO Threshold Range: +4V to +24V
  • Startup Debounce Time:21ms(TYP)
  • Internal Thermal-Shutdown Protection
  • Surge immunity to ±100V
  • ESD Protected(HBM) to ±4KV
  • Package: FCQFN-12 (1.8mm×1.3mm)

Technical Documentation

Type Title Format Date
Datasheet ET9551M PDF 2026-07-09
