ET9545L
Contact
General Description
ET9545L can disconnect the systems from its output pin (OUT) in case wrong input operating conditions are detected. The system is positive over-voltage protected up to 28V. The internal over-voltage threshold (OVLO) is 6.8V.
ET9545L has internal Thermal-Shutdown Protection and Input Moisture detection.

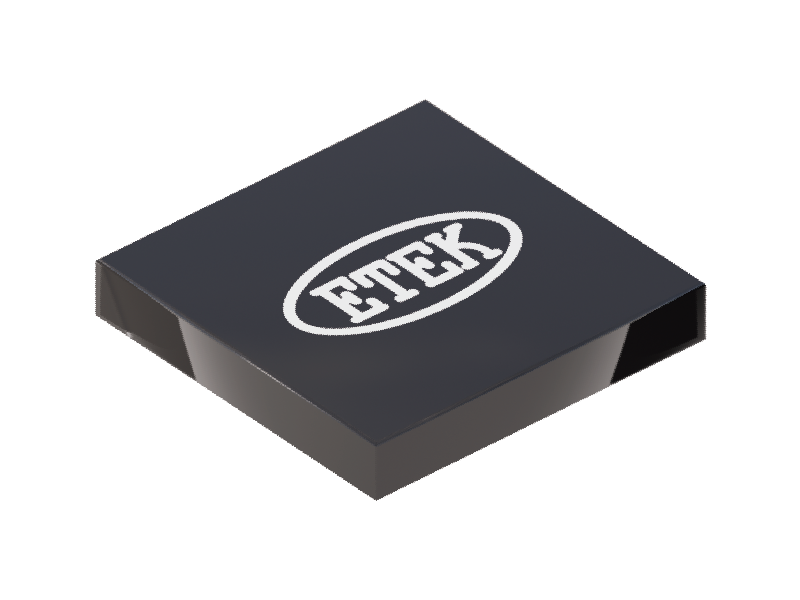

The device is packaged in advanced full-Green compliant WLCSP12 package.
Specification
Sample
Features
- 5.5A Continuous Current Capability
- Typical RON: 20mΩ N-Channel MOSFET
- VIN Operating Range: 3.2V to 28V
- Internal Over-Voltage Lockout: 6.8V
- Over-Voltage-Protection Response Time: 50ns (TYP)
- Moisture Detection for VIN
- Startup Debounce Time: 15ms (TYP)
- Internal Thermal-Shutdown Protection
- Surge Immunity to ±80V
- WLCSP12 (1.55mm×1.10mm 0.4mm pitch ) Package
