ET9543

Email Inquiry IconContact

General Description

ET9543 can disconnect the systems from its output pin (OUT) in case wrong input operating conditions are detected. The system is positive over-voltage protected up to 29V. The internal over-voltage threshold(OVLO) is 5.8V. ET9543 has internal thermal shutdown Protection and Input Voltage detection. And ET9543 internal switch supports 10Mbps digital signal communication when VIN=0V and powered by VDD pin.

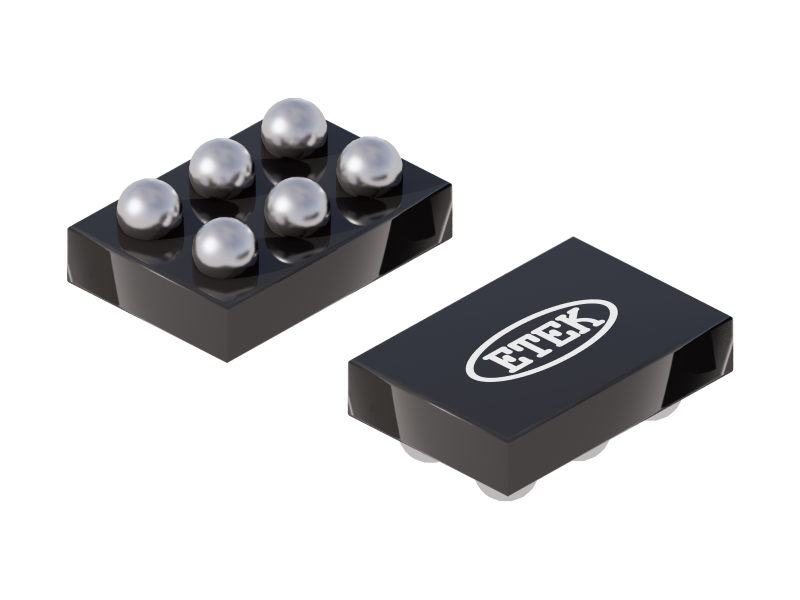

The device is packaged in advanced full-Green compliant Wafer Level Chip Scale Packaging (WLCSP6).

Features

  • 4A Continuous Current Capability
  • Typical RON: 22mΩ N-Channel MOSFET
  • VIN Operating Range: 2.7V to 29V
  • Over-Voltage Protection (OVP) Threshold: 5.8V (TYP)
  • Over-Voltage Protection Response Time: 50ns (TYP)
  • Support 10Mbps Communication
  • Internal Thermal-Shutdown Protection
  • ESD Protection
  • Package: WLCSP6 (ball pitch=0.4mm)

Technical Documentation

Type Title Format Date
Datasheet ET9543 PDF 2026-11-20
