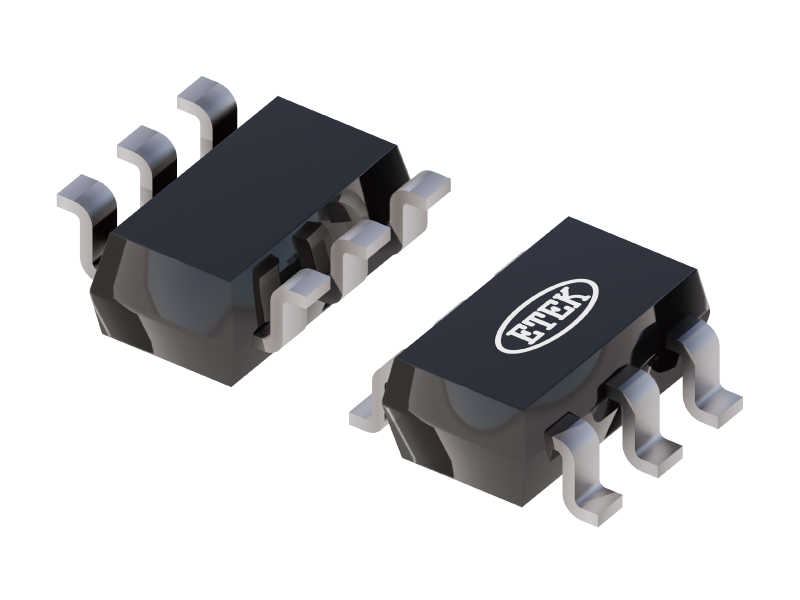

ET2016B

General Description

The ET2016B are current limited P-channel MOSFET power switch designed for high-side load switching applications. This switch operates with inputs ranging from 2.5V to 5.5V, making it ideal for both 3.3V and 5V systems. An integrated current-limiting circuit protects the input supply against large currents which may cause the supply to fall out of regulation. The ET2016B is also protected from thermal overload which limits power dissipation and junction temperatures. It can be used to control loads that require from 0.275A to 2.7A. Current limit threshold is programmed with a resistor from SET to ground. The quiescent supply current in active mode is only 25μA. In shutdown mode, the supply current decreases to less than 1μA.

The ET2016B is available in Pb-free packages and is specified over the -40℃ to +85℃ ambient temperature range.
