ET5907
General Description
The ET5907 is CMOS-based low-dropout, low-power linear regulator. It’s a 7-channel integrated LDOs for camera applications. Two channels offering max 1200mA with NMOS pass transistor, five channels offering max 400mA with PMOS pass transistor. ET5907 include 1000kHz high speed I2C interface, the function setting is flexible such as Under voltage lockout (UVLO), power sequence, output voltage, output discharge, current limit per channel. The chip enable control support EN pin control and I2C control. The ET5907 is available in 20-bump, 0.35 mm pitch, Wafer-Level Chip-Scale Package (WLCSP).
Features
- LDO1 and LDO2
- LDO3~LDO7
- Very Low input quiescent current of Typ. 150µA
- Operation guaranteed with battery voltage down to 2.7V
- Programmable Power Start-Up/Down Sequencing
- Built-in thermal Global Shutdown Protection (OTP)
- Built-in under Voltage Global Shutdown Protection(UVP)
- Built-in over current protection(OCP) and auto-discharging circuit
- Built-in under voltage lockout (UVLO)
- I²C serial control to program output voltage and features

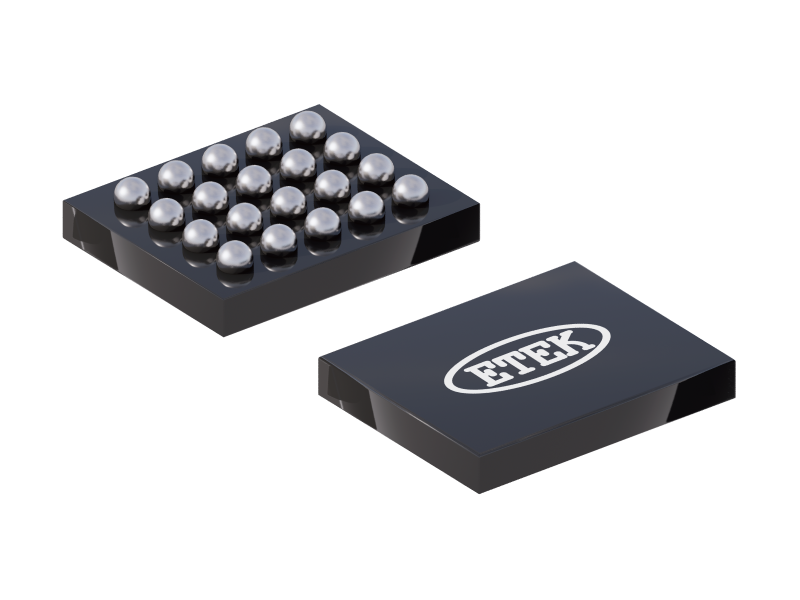

- Package: WLCSP-20 1.85mm×1.48mm; MSL: 1
