ET7H2XX

Email Inquiry IconContact

General Description

ET7H2XX series are 30µA LDO with 200mA output ability, it uses an advanced CMOS process and a PMOSFET pass device to achieve low noise, fast start-up and excellent output accuracy. The dynamic transient boost feature improves device transient response for wireless communication applications.

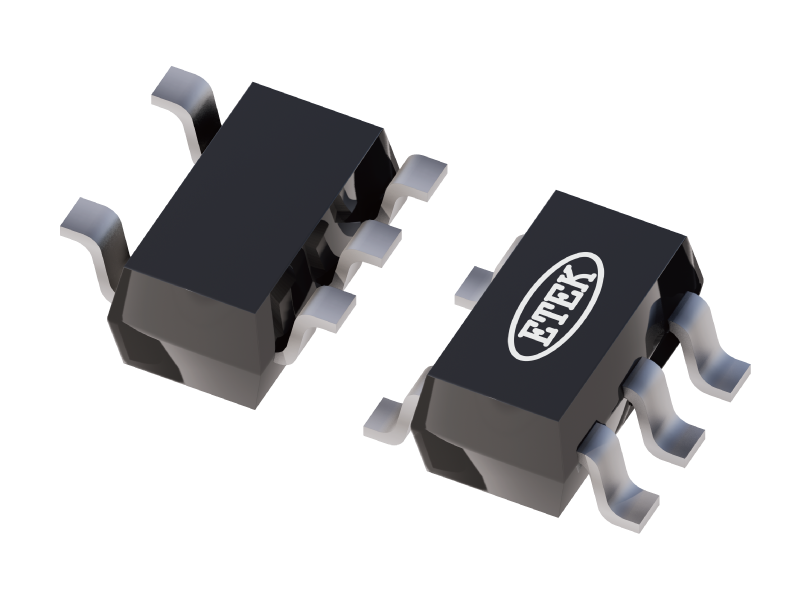

ET7H2XX series are offered SOT89-3, SOT23-5, SOT23-3, DNF4(1mm ×1mm) packages

Features

  • Wide Input Voltage Range From 2.5V to 16V
  • Up to 200mA Load Current
  • IQ is 30µA Typical
  • Dropout is 1000mV at 200mA Load @VOUT = 1.2V
  • Dropout is 680mV at 200mA Load @VOUT = 1.8V
  • Short Current Protection is 100mA
  • Excellent Load/Line Transient Response
  • Line Regulation is 0.01%/V Typical
  • Package: SOT89-3; SOT23-5; SOT23-3; DFN4 (1mm × 1mm)

Technical Documentation

Type Title Format Date
Datasheet ET7H2XX PDF 2026-10-13
