General Description
ET65H11XX are the high input very low IQ 500mA LDO with high power supply rejection ratio (PSRR), is designed specifically for portable battery-powered applications which require ultra-low quiescent current. The very-low consumption of type 1µA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
The ET65H11XX family are available in standard fixed output voltages of 1.8V (ET65H1118), 2.5V (ET65H1125), 2.8V (ET65H1128), 3.0V (ET65H1130), 3.3V (ET65H1133), 3.6V (ET65H1136), 4.0V (ET65H1140), 5.0V ET65H1150), and custom voltage options (50mV step options).

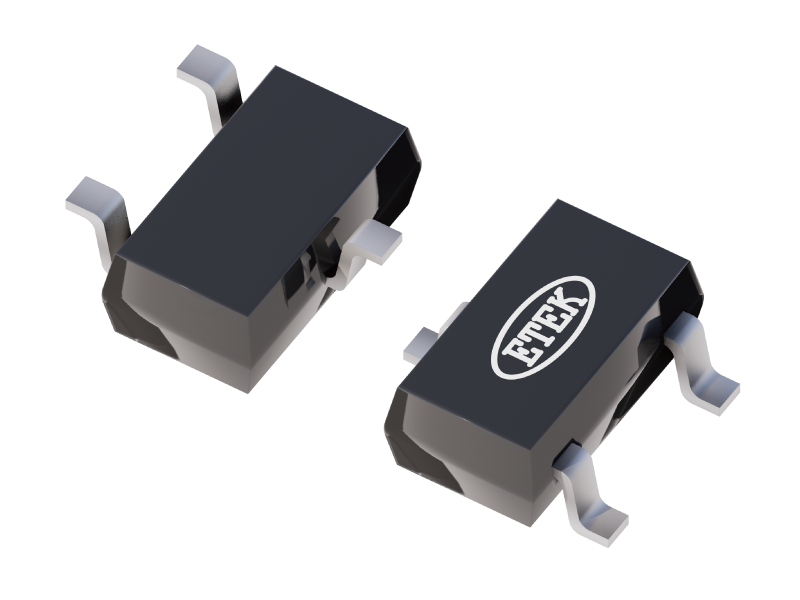

ET65H11XX is offered SOT89-3, SOT23-5, SOT23-3 packages.
Specification
Sample
Features
- Wide Input Voltage Range: 1.8V to 12V
- Up to 500mA Load Current
- Standard Fixed Output Voltage Options: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, and 5.0V
- Other Output Voltage Options Available on Request
- Very Low IQ: 1µA
- Low Dropout: 730mV @ 500mA / VOUT = 3.3V
- Very High PSRR: 80dB at 1KHz
- Excellent Load/Line Transient Response
- ESD Protection Complies with JESD22 Standard
- Latch-up Performance Exceeds ±200mA per JEDEC JESD78F
- Package：SOT89-3；SOT23-3；SOT23-5
