ET5HAADJ
General Description
The ET5HAADJ is a high voltage ADJ type LDO with enable function, the output operates from 0.8V to 5.5V. The characteristics are low noise and good PSRR and low dropout voltage, make this device ideal for portable consumer applications.
The ET5HAADJ can operate with up to 20V input.

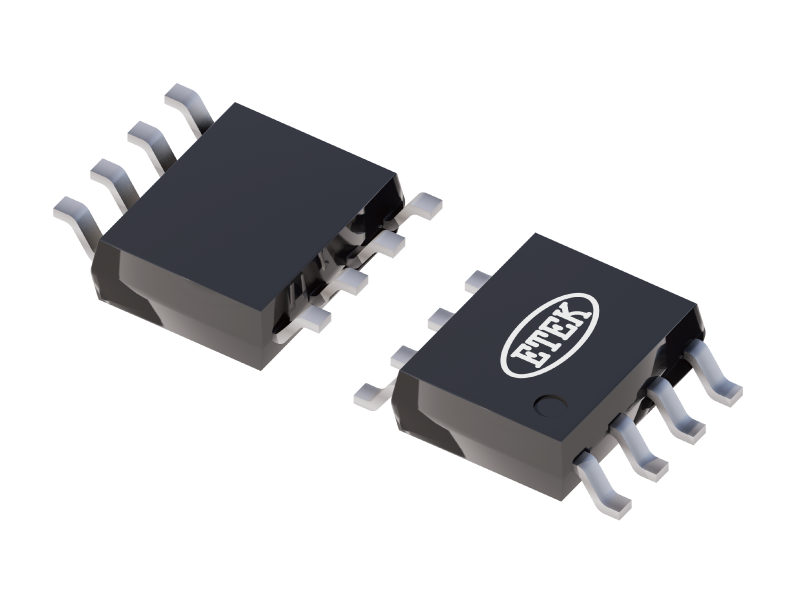

The Devices are available in ESOP8, DFN6 packages .
Features
- Operating Input Voltage Range:2.7V~20V
- Max Output Current: 1A
- Output Voltage Accuracy: ±2%
- Adjustable Output Voltage 0.8V~5.5V with VFB = 0.6V
- Standby Current: 160uA (Typ.)
- High Ripple Rejection: 80dB at 1kHz
- Low Dropout: 480mV (Typ.) at 1A @ VOUT = 3.3V
- Package: DFN6 (2.0mm × 2.0mm); ESOP8 (4.9mm × 6.0mm)
- MSL: 1; 3
