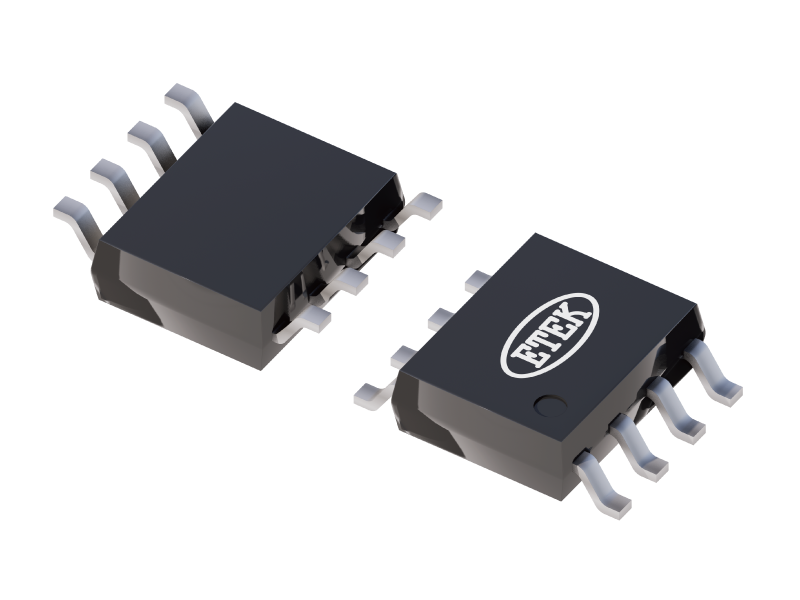

ET5H7XX

Email Inquiry IconContact

General Description

ET5H7XX series are the high input very low IQ 300mA LDO with enable function that operates from 3.0V~15V, is designed specifically for portable battery-powered applications which require ultra-low quiescent current. The very-low consumption of type 3.0μA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.

ET5H7XX series are offered SOT89-3, SOT23-5, SOT23-3, ESOP8 packages.

Features

  • Wide Input Voltage Range: 3.0V to 60V
  • Up to 300mA Load Current
  • Very low IQ: 3.0µA
  • Fixed Output Voltage are 3.0V, 3.3V, 3.6V, 5.0V, 8.0V, 12V, etc
  • Low dropout: 1350mV @ 300mA /VOUT = 3.0V
  • Excellent Load/Line Transient Response
  • High Ripple Rejection: 50dB at 1KHz
  • Package: SOT89-3; SOT23-3; SOT23-5; ESOP8
  • MSL: 3

Technical Documentation

Type Title Format Date
Datasheet ET5H7XX PDF 2026-10-13
