General Description

ET5H6ADJ is a high input voltage and ultra-high PSRR 300mA LDO with enable function that output adjustable from 1.0V~5.0V, which is designed specifically for portable battery-powered applications which require low quiescent current. The consumption of type 50uA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.

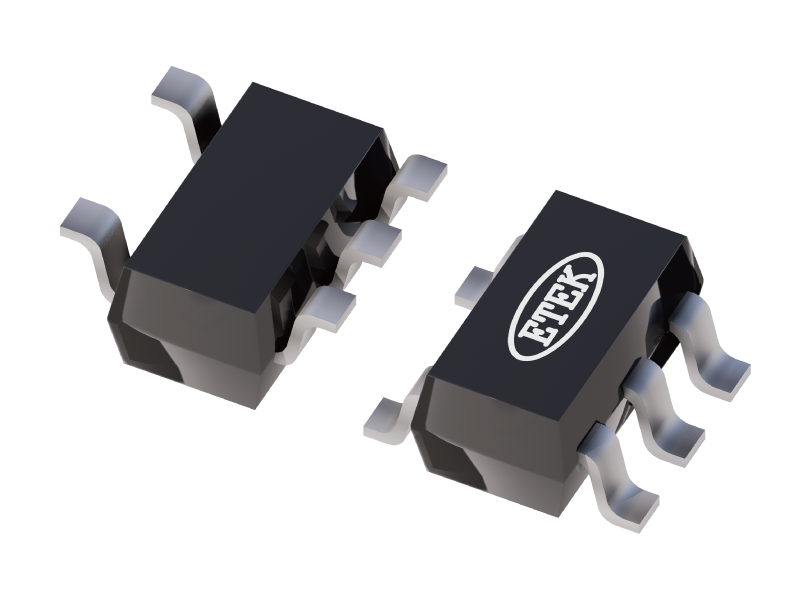

ET5H6ADJ offered SOT89-5, SOT23-5, DFN6 packages.

Features

  • Wide Input Voltage Range from 3V to 24V
  • Up to 300mA Load Current
  • Low IQ is 50µA Typical
  • ADJ Output Voltage Range 1.0V~5.0V
  • Very Low Dropout is 330mV at 150mA Load @VOUT = 3.3V
  • Excellent Load/Line Transient Response
  • Ultra-High Ripple Rejection: 90dB at 1kHz
  • Package: SOT23-5; SOT89-5; DFN6 (2mm×2mm)
  • MSL: 1; 3

Technical Documentation

Type Title Format Date
Datasheet ET5H6ADJ PDF 2026-08-18
Datasheet ET5H6ADJY PDF 2026-11-22
