General Description

ET5H2XX series are the high input very low IQ 300mA LDO with enable function that operates from 1.8V~5V, is designed specifically for portable battery-powered applications which require ultra-low quiescent current. The very-low consumption of type 2.5µA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.

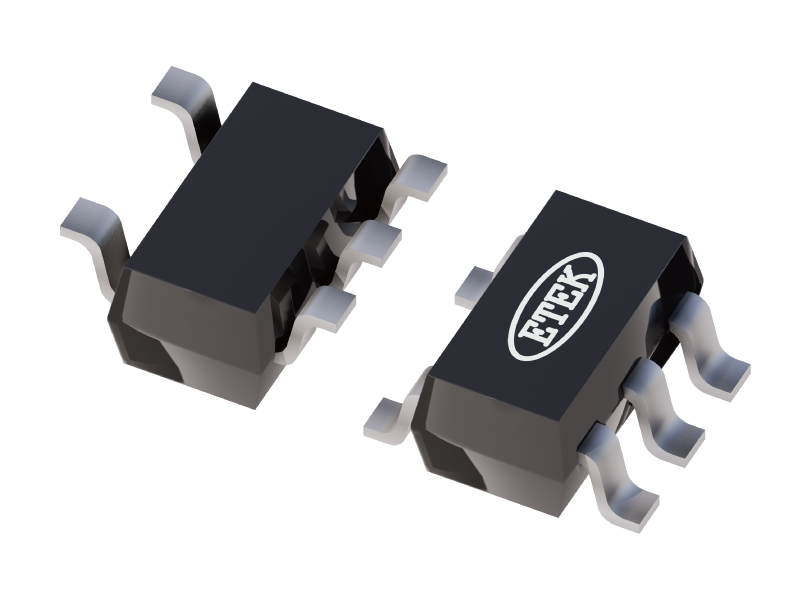

ET5H2XX series are offered SOT89-3, SOT89-5, SOT23-5, SOT23-3, DNF4(1mm × 1mm) packages.

Features

  • Wide Input Voltage Range from 2.5V to 36V
  • Up to 300mA Load Current
  • Very Low IQ is 2.5µA Typical
  • Fixed Output Voltage are 1.8V,2.5V,2.8V,3.0V,3.3V,3.6V,4.2V,5V, etc.
  • Low Dropout is 1000mV at 300mA Load @VOUT = 3.3V
  • Excellent Load/Line Transient Response
  • High Ripple Rejection: 60dB at 1KHz
  • Package: SOT89-3; SOT89-5; SOT23-3; SOT23-5; DFN4
  • MSL: 1; 3

Technical Documentation

Type Title Format Date
Datasheet ET5H2XX PDF 2026-10-26
Datasheet ET5H2XXB PDF 2026-11-22
