What are the key specifications and features of ETQ8134M?

Key technical specifications and features of the ETEK ETQ8134M include: 4.5V; to; 38V; Input; Voltage; Range; 3A; Converters; Integrated; 130mΩ; and; 100mΩ; FET; FSW; 600kHz; VFB; 0.923V; Synchronous; Rectification; ACOT; Control; Architecture; Automotive; AEC-Q100; Grade; 2; Qualified.

Where can I download the ETQ8134M datasheet or request evaluation samples?

Engineers and buyers can download the official ETQ8134M PDF datasheet directly from the Technical Documentation table on this page, or submit a sample and quote request via https://www.etekmicro.com/sample/.

ETQ8134M

Q: What is the ETEK ETQ8134M?

ETQ8134M is a high-performance integrated circuit from Wuxi ETEK Microelectronics: The ETQ8134M is a high-efficiency synchronous step-down DC-DC converter with ACOT control architecture. It provides 3A continuous output current with .

Contact

ETQ8134M General Description

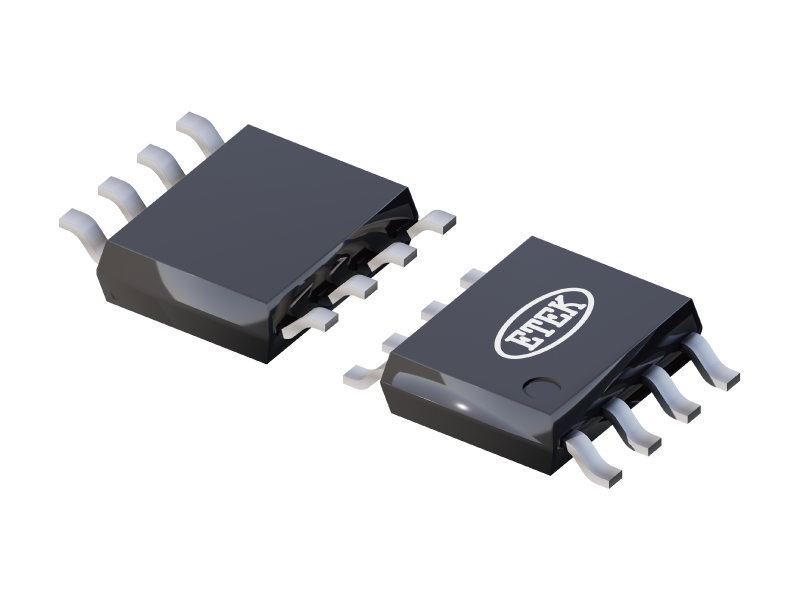

The ETQ8134M is a high-efficiency synchronous step-down DC-DC converter with ACOT control architecture. It provides 3A continuous output current with excellent transient response and high efficiency. ETQ8134M is available in a a ESOP8 package

Specification

Sample

ETQ8134M Key Features

4.5V to 38V Input Voltage Range
3A Converters Integrated 130mΩ and 100mΩ FET
FSW 600kHz
VFB 0.923V
Synchronous Rectification
ACOT Control Architecture
Automotive AEC-Q100 Grade 2 Qualified

ETQ8134M Technical Documentation

Type	Title	Format	Date
Datasheet	ETQ8134M Datasheet	PDF	2026-11-10

ETQ8134M Typical Applications

Digital TV Power Supply and Surveillance
Disc Players
Networking Home Terminal
Digital Set Top Box
