ET8307A

Email Inquiry IconContact

General Description

The ET8307A series is a high efficiency synchronous step-down converter featuring typical 360nA quiescent current. It provides high efficiency at light load down to 10µA. Its input voltage ranges from 2.2V to 5.5V and provides eight programmable output voltages between 0.7V and 3.1V while delivering output current up to 400mA, peak to 0.5A.

The Adaptive-Constant-On-Time (ACOT) operation with internal compensation allow the transient response to be optimized over a wide range of loads and output capacitors.

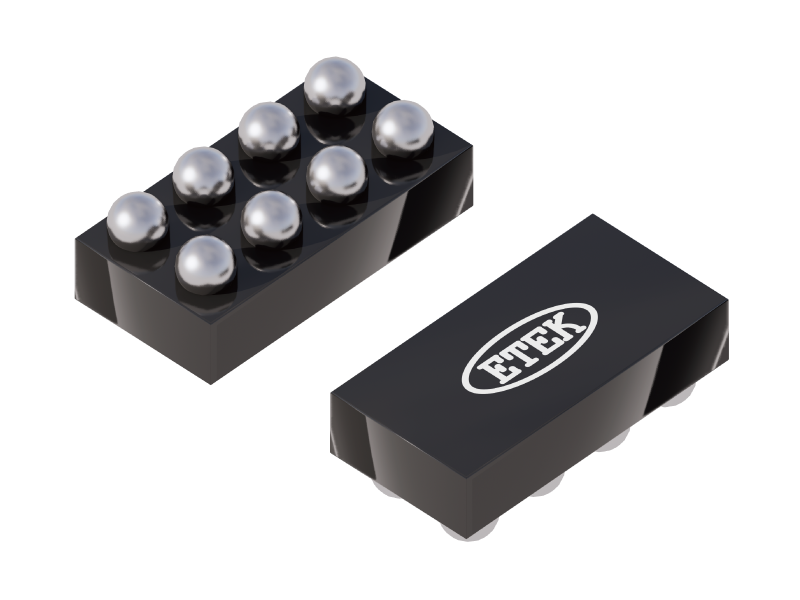

The ET8307A is a available in WLCSP8 (0.8 ×1.6 ,0.4 pitch) package.

Features

  • Input Voltage Range : 2.2V to 5.5V
  • Programmable Output Voltage 8-Level
  • Typ 360nA Quiescent Current
  • PFM Operation With Light Load
  • Up to 94% Efficiency
  • Internal Compensation
  • Output Discharge
  • Over-Current Protection
  • Over-Temperature Protection
  • Output Current:
  • Automatic Transition to 100% Duty Cycle Operation
  • Package: WLCSP8 (0.8 ×1.6 ,0.4 pitch)

Technical Documentation

Type Title Format Date
Datasheet ET8307A-RY PDF 2026-10-22
Datasheet ET8307AY PDF 2026-11-20
