ET8131CAM
General Description
The ET8131CAM is a highly integrated, wide input voltage, 3A output synchronous buck convertor.
The device is optimized to operate with minimum external component counts and also optimized to achieve low standby current.
This convertor adopts adaptive constant-on-time (ACOT) structure, and provides a fast transient response. It also supports both low-equivalent series resistance (ESR) output capacitors and ultra-low ESR ceramic capacitors with no external compensation components.
During light load operation, ET8131CAM operates in pulse frequency modulation (PFM) mode, which maintains high efficiency.
ET8131CAM operates over an ambient temperature range of -40°C to +125°C.
Features
- 3A Converters Integrated 90mΩ and 50mΩ FET
- ACOT mode control with fast transient response
- Input Voltage Range: 4.5 V to 17 V
- Output Voltage Range: 0.76 V to 7 V
- PFM mode during light load operation
- 580KHz Switching Frequency
- Low Shutdown Current Less than 5 µA
- Start-up from Pre-Biased Output Voltage
- Cycle-by-Cycle Over-current Limit
- Hiccup-mode Over-current Protection
- Non-Latch UVP and TSD Protections
- Fixed Soft Start: 1.0ms
- Automotive AEC-Q100 Grade 1 Certified

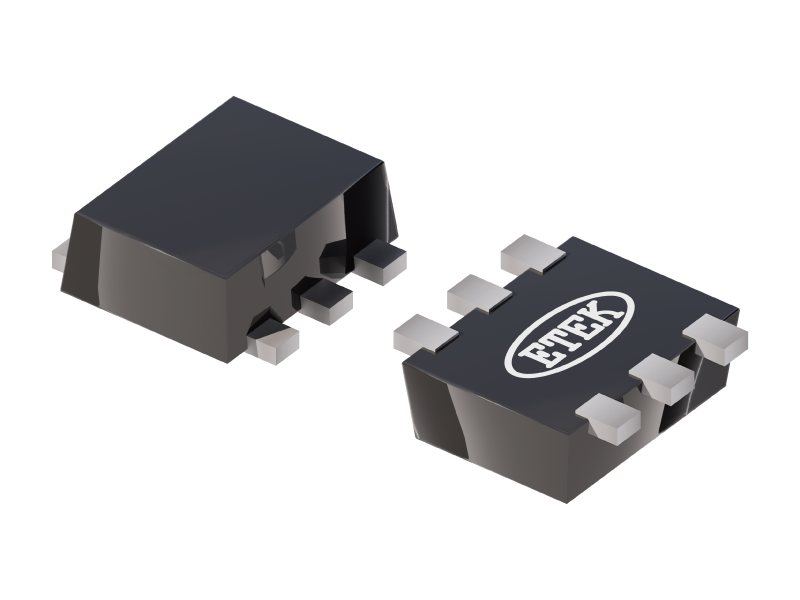

- Package: SOT-563; MSL: 1
